HSMG-C190
Manufacturer
Broadcom
Description

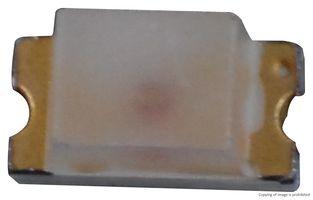

Surface Mount ChipLED Single Color LED, Green, Untinted Diffused, 1mm
Datasheet
DownloadProduct Attributes
Type
Case/Package
Case Code (Imperial)
Case Code (Metric)
Color
Contact Plating
Depth
Dominant Wavelength
Forward Current
Forward Voltage
Frequency
Height
Illumination Color
Interface
Lead Free
Length
Lens Color
Lens Style
Lens Transparency
Luminous Intensity
Max Operating Temperature
Max Power Dissipation
Max Supply Voltage
Min Operating Temperature
Min Supply Voltage
Mount
Nominal Supply Current
Number of Elements
Number of LEDs
Number of Pins
Packaging
Peak Wavelength
Power Dissipation
Power Rating
Radiation Hardening
REACH SVHC
Reverse Voltage
RoHS
Test Current
Viewing Angle
Wavelength
Width
Description
0603
0603
1608
Green
Gold
800 µm
572 nm
20 mA
2.2 V
400 kHz
1.5 mm
Green
Serial
Lead Free
5 mm
Clear, White
Diffused
Diffused
15 mcd
85 °C
52 mW
5.5 V
-40 °C
1.7 V
Surface Mount
2 mA
1
1
2
Tape and Reel
570 nm
52 mW
52 mW
No
No SVHC
5 V
Compliant
20 mA
170 °
572 nm
4 mm
