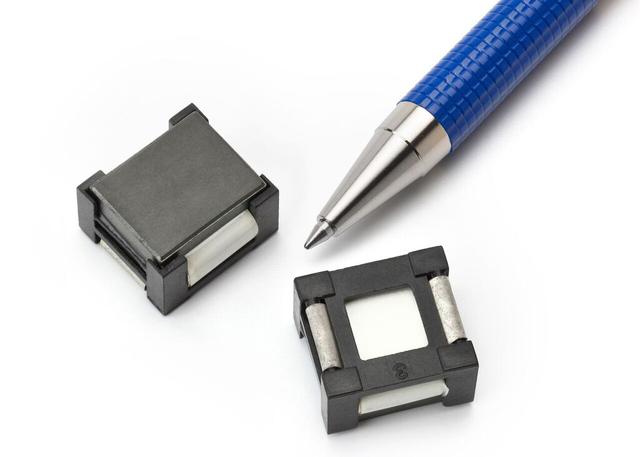

HC1-5R1-R
Manufacturer
Eaton
Description
Inductor Power Wirewound 5.15uH/5.1uH 15% 300KHz Ferrite 12.79A 5.7mOhm DCR T/R
Datasheet
DownloadProduct Attributes
Type
Case/Package
Composition
Core Material
Current Rating
DC Resistance (DCR)
Depth
Height
Height - Seated (Max)
Inductance
Inductance Tolerance
Lead Free
Length
Lifecycle Status
Max Current Rating
Max DC Current
Max Operating Temperature
Military Standard
Min Operating Temperature
Mount
Number of Circuits
Number of Pins
Number of Terminals
Packaging
Radiation Hardening
REACH SVHC
RMS Current (Irms)
RoHS
Saturation Current
Schedule B
Shielding
Termination
Test Frequency
Tolerance
Weight
Width
Description
Nonstandard
Wirewound
Ferrite
12.79 A
5.7 mΩ
13 mm
10 mm
10.0076 mm
5.1 µH
15 %
Lead Free
13 mm
Production (Last Updated: 7 months ago)
11.2 A
12.79 A
85 °C
Not
-40 °C
Surface Mount
1
2
2
Cut Tape
No
Yes
12.79 A
Compliant
11.2 A
8504500000, 8504500000|8504500000|8504500000|8504500000|8504500000|8504500000|8504500000|8504500000|8504500000|8504500000|8504500000|8504500000|8504500000|8504500000|8504500000|8504500000|8504500000|8504500000|8504500000|8504500000|8504500000|8504500000|8504500000|85
No
SMD/SMT
300 kHz
15 %
1.360777 g
13 mm
In Stock
Quantity
MOQ : 1
Per Unit Price
₹413.48
Total Price
₹413.48
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹413.48
₹413.48
10
₹311.40
₹3113.98
25
₹311.43
₹7785.84
50
₹311.22
₹15561.00
100
₹288.15
₹28815.42
500
₹240.59
₹120295.42
1000
₹229.87
₹229866.20
