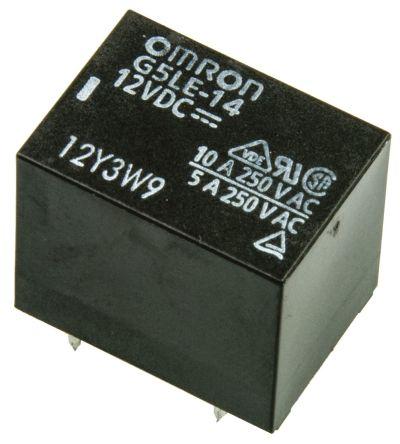

G5LE-14 DC12
Manufacturer
Omron
Description
Electromechanical Relay 12VDC 360Ohm 8ADC/10AAC SPDT (( 22.5mm 16.5mm 19mm)) THT Power Relay
Datasheet
DownloadProduct Attributes
Type
Ambient Temperature Range High
Approvals
Coil Current
Coil Power
Coil Resistance
Coil Type
Coil Voltage (DC)
Contact Current Rating
Contact Material
Current Rating
Depth
Height
Lead Free
Length
Max Current Rating
Max Operating Temperature
Max Voltage Rating (AC)
Max Voltage Rating (DC)
Min Operating Temperature
Mount
Number of Contacts
Number of Pins
Operate Time
Power Consumption
Radiation Hardening
Relay Type
Release Time
RoHS
Switching Current
Termination
Throw Configuration
Voltage Rating (AC)
Voltage Rating (DC)
Weight
Description
85 °C
CSA, UL
33.3 mA
400 mW
360 Ω
Non-Latching
12 V
10 A
Silver, Tin
10 A
16.5 mm
19 mm
Lead Free
22.5 mm
10 A
85 °C
250 V
125 V
-40 °C
PCB, Through Hole
1
5
10 ms
400 mW
No
General Purpose
5 ms
Compliant
10 A
Solder
SPDT
120 V
30 V
12 g
Product Attributes
Type
Ambient Temperature Range High
Approvals
Coil Current
Coil Power
Coil Resistance
Coil Type
Coil Voltage (DC)
Contact Current Rating
Contact Material
Current Rating
Depth
Height
Lead Free
Length
Max Current Rating
Max Operating Temperature
Max Voltage Rating (AC)
Max Voltage Rating (DC)
Min Operating Temperature
Mount
Number of Contacts
Number of Pins
Operate Time
Power Consumption
Radiation Hardening
Relay Type
Release Time
RoHS
Switching Current
Termination
Throw Configuration
Voltage Rating (AC)
Voltage Rating (DC)
Weight
Description
85 °C
CSA, UL
33.3 mA
400 mW
360 Ω
Non-Latching
12 V
10 A
Silver, Tin
10 A
16.5 mm
19 mm
Lead Free
22.5 mm
10 A
85 °C
250 V
125 V
-40 °C
PCB, Through Hole
1
5
10 ms
400 mW
No
General Purpose
5 ms
Compliant
10 A
Solder
SPDT
120 V
30 V
12 g
