FZT753TA
Manufacturer
Diodes Inc.
Description

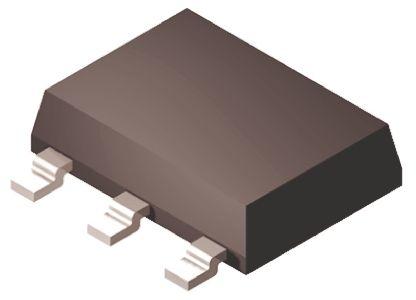

FZT753 Series PNP 2 A 100 V SMT Silicon Medium Power Transistor - SOT-223
Datasheet
DownloadProduct Attributes
Type
Case/Package
Collector Base Voltage (VCBO)
Collector Emitter Breakdown Voltage
Collector Emitter Saturation Voltage
Collector Emitter Voltage (VCEO)
Contact Plating
Continuous Collector Current
Current
Current Rating
Element Configuration
Emitter Base Voltage (VEBO)
Frequency
Gain Bandwidth Product
Height
Lead Free
Length
Max Breakdown Voltage
Max Collector Current
Max Frequency
Max Operating Temperature
Max Power Dissipation
Min Operating Temperature
Mount
Number of Elements
Number of Pins
Packaging
Polarity
Power Dissipation
Radiation Hardening
REACH SVHC
RoHS
Schedule B
Transition Frequency
Voltage
Voltage Rating (DC)
Weight
Width
Description
SOT-223
120 V
100 V
-300 mV
100 V
Tin
-2 A
2 A
-2 A
Single
5 V
140 MHz
140 MHz
1.65 mm
Lead Free
6.7 mm
100 V
2 A
140 MHz
150 °C
2 W
-55 °C
Surface Mount
1
4
Digi-Reel®
PNP
2 W
No
No SVHC
Compliant
8541290080, 8541290080|8541290080|8541290080|8541290080|8541290080|8541290080|8541290080|8541290080|8541290080|8541290080|8541290080|8541290080|8541290080|8541290080|8541290080|8541290080|8541290080|8541290080|8541290080|8541290080|8541290080|8541290080|8541290080|85
140 MHz
100 V
-100 V
7.994566 mg
3.7 mm
