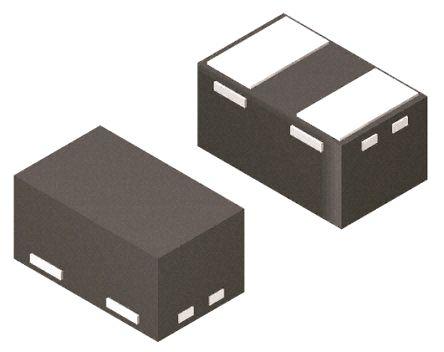

ESDALC5-1BT2
Manufacturer
STMicroelectronics
Description
TVS Diodes / ESD Suppressors Single Line Transil Vbr 5V min 26pF 0
Datasheet
DownloadProduct Attributes
Type
Breakdown Voltage
Capacitance
Clamping Voltage
Composition
Depth
Direction
Element Configuration
ESD Protection
Height
Lead Free
Leakage Current
Length
Lifecycle Status
Max Breakdown Voltage
Max Operating Temperature
Max Power Dissipation
Max Repetitive Reverse Voltage (Vrrm)
Max Reverse Leakage Current
Min Breakdown Voltage
Min Operating Temperature
Mount
Number of Bidirectional Channels
Number of Channels
Number of Pins
Packaging
Peak Pulse Current
Peak Pulse Power
Polarity
Power Line Protection
Radiation Hardening
REACH SVHC
Reverse Standoff Voltage
RoHS
Schedule B
Termination
Width
Description
5 V
26 pF
20.1 V
Zener
600 µm
Bidirectional
Single
Yes
350 µm
Lead Free
60 nA
1 mm
Production (Last Updated: 3 years ago)
8 V
150 °C
150 W
5 V
60 nA
5 V
-55 °C
Surface Mount
1
1
2
Tape and Reel
9 A
150 W
Bidirectional
No
No
No SVHC
5 V
Compliant
8536300000, 8536300000|8536300000|8536300000|8536300000|8536300000
SMD/SMT
650 µm
