ESDA18-1K
Manufacturer
STMicroelectronics
Description

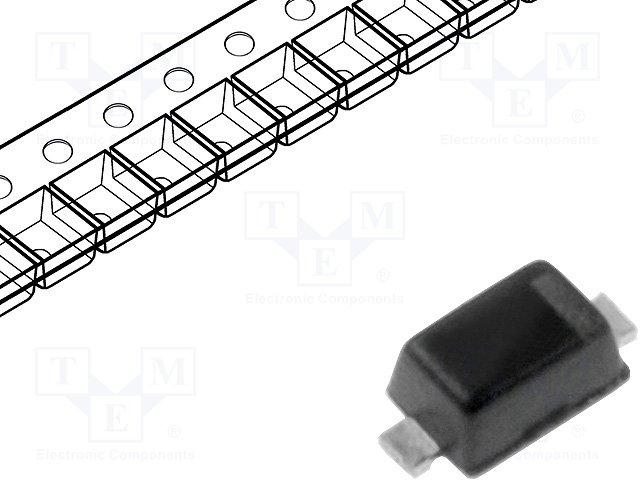

ESDA Series 1 Channel 18 V 105 pF SMT Uni Direction Transil Array - SOD-523
Datasheet
DownloadProduct Attributes
Type
Breakdown Voltage
Capacitance
Clamping Voltage
Composition
Contact Plating
Depth
Direction
Element Configuration
ESD Protection
Height
Lead Free
Leakage Current
Length
Lifecycle Status
Max Breakdown Voltage
Max Junction Temperature (Tj)
Max Operating Temperature
Max Power Dissipation
Max Reverse Leakage Current
Min Breakdown Voltage
Min Operating Temperature
Mount
Number of Channels
Number of Lines
Number of Pins
Number of Unidirectional Channels
Packaging
Peak Pulse Current
Peak Pulse Power
Polarity
Power Line Protection
Radiation Hardening
REACH SVHC
Reverse Standoff Voltage
RoHS
Schedule B
Termination
Width
Working Voltage
Description
18 V
105 pF
34 V
Zener
Tin
800 µm
Unidirectional
Single
Yes
500 µm
Lead Free
500 nA
1.2 mm
Production (Last Updated: 2 years ago)
18 V
150 °C
150 °C
450 W
500 nA
18 V
-40 °C
Surface Mount
1
1
2
1
Tape and Reel
12 A
400 W
Unidirectional
No
No
No SVHC
15 V
Compliant
8536300000, 8536300000|8536300000, 8536300000|8536300000|8536300000, 8536300000|8536300000|8536300000|8536300000
SMD/SMT
900 µm
15 V
