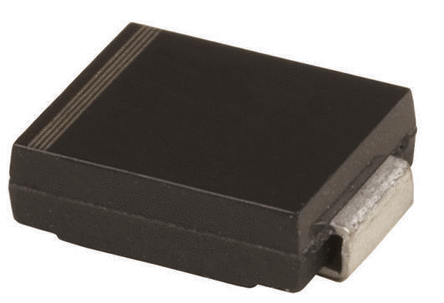

ES3D-13-F
Manufacturer
Diodes Inc.
Description
ES3D Series 200 V 3 A Surface Mount Super-Fast Rectifier - DO-214AB
Datasheet
DownloadProduct Attributes
Type
Average Rectified Current
Capacitance
Case/Package
Contact Plating
Current Rating
Element Configuration
Forward Current
Forward Voltage
Height
Lead Free
Length
Max Operating Temperature
Max Repetitive Reverse Voltage (Vrrm)
Max Reverse Voltage (DC)
Max Surge Current
Min Operating Temperature
Mount
Number of Pins
Output Current
Packaging
Peak Non-Repetitive Surge Current
Peak Reverse Current
Polarity
Radiation Hardening
Recovery Time
Reverse Recovery Time
Reverse Voltage (DC)
RoHS
Schedule B
Termination
Voltage Rating (DC)
Weight
Width
Description
3 A
45 pF
SMC
Tin
3 A
Single
3 A
900 mV
2.42 mm
Lead Free
7.11 mm
150 °C
200 V
200 V
100 A
-55 °C
Stud, Surface Mount
2
3 A
Cut Tape
100 A
10 µA
Standard
No
25 ns
25 ns
200 V
Compliant
8541100080, 8541100080|8541100080|8541100080|8541100080|8541100080
SMD/SMT
200 V
210.013267 mg
6.22 mm
In Stock
Quantity
MOQ : 3
Per Unit Price
₹40.01
Total Price
₹120.04
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹120.04
₹120.04
10
₹23.12
₹231.19
25
₹23.14
₹578.42
50
₹23.12
₹1155.96
100
₹19.13
₹1912.67
500
₹19.12
₹9562.46
1000
₹18.61
₹18609.18
