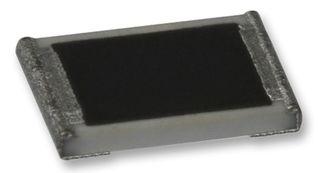

ERJ6ENF1472V
Manufacturer
Panasonic
Description
Res Thick Film 0805 14.7K Ohm 1% 1/8W 100ppm/C Molded SMD Punched Carrier T/R
Datasheet
DownloadProduct Attributes
Type
Case/Package
Case Code (Imperial)
Case Code (Metric)
Composition
Contact Plating
Depth
Features
Height
Lead Free
Length
Lifecycle Status
Max Operating Temperature
Max Power Dissipation
Military Standard
Min Operating Temperature
Mount
Number of Terminations
Packaging
Power Rating
Radiation Hardening
REACH SVHC
Resistance
RoHS
Schedule B
Temperature Coefficient
Termination
Tolerance
Voltage Rating
Voltage Rating (DC)
Width
Description
0805
0805
2012
Thick Film
Tin
1.25 mm
Automotive AEC-Q200
600 µm
Lead Free
2 mm
Production (Last Updated: 1 year ago)
155 °C
125 mW
Not
-55 °C
Surface Mount
2
Cut Tape
125 mW
No
No SVHC
14.7 kΩ
Compliant
8533210045, 8533210045|8533210045, 8533210045|8533210045|8533210045, 8533210045|8533210045|8533210045|8533210045
100 ppm/°C
Solder
1 %
150 V
150 V
1.2446 mm
