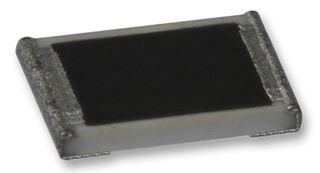

ERJ-8ENF4220V
Manufacturer
Panasonic
Description
Res Thick Film 1206 422 Ohm 1% 0.25W(1/4W) +/-100ppm/C Molded SMD Automotive Punched T/R
Datasheet
DownloadProduct Attributes
Type
Case/Package
Case Code (Imperial)
Case Code (Metric)
Composition
Contact Plating
Depth
Features
Height
Length
Lifecycle Status
Max Operating Temperature
Max Power Dissipation
Military Standard
Min Operating Temperature
Mount
Number of Terminations
Packaging
Power Rating
REACH SVHC
Resistance
RoHS
Schedule B
Temperature Coefficient
Termination
Tolerance
Voltage Rating
Voltage Rating (DC)
Width
Description
1206
1206
3216
Thick Film
Tin
1.6 mm
Automotive AEC-Q200
711.2 µm
3.2 mm
Production (Last Updated: 1 year ago)
155 °C
250 mW
Not
-55 °C
Surface Mount
2
Cut Tape
250 mW
No SVHC
422 Ω
Compliant
8533210045, 8533210045|8533210045|8533210045|8533210045|8533210045
100 ppm/°C
SMD/SMT
1 %
200 V
200 V
1.6 mm
