ERA-6AEB103V
Manufacturer
Panasonic
Description

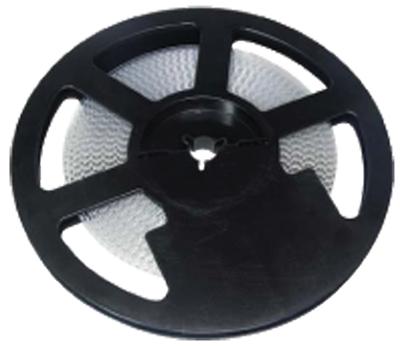

Res Thin Film 0805 10K Ohm 0.1% 1/8W 25ppm/C Molded SMD SMD Punched Carrier T/R
Datasheet
DownloadProduct Attributes
Type
Case/Package
Case Code (Imperial)
Case Code (Metric)
Composition
Contact Plating
Depth
Height
Lead Free
Length
Lifecycle Status
Max Operating Temperature
Max Power Dissipation
Military Standard
Min Operating Temperature
Mount
Number of Pins
Number of Terminations
Packaging
Power Rating
Radiation Hardening
REACH SVHC
Resistance
RoHS
Schedule B
Temperature Coefficient
Termination
Tolerance
Voltage Rating
Voltage Rating (DC)
Width
Working Voltage
Description
0805
0805
2012
Metal Film, Thin Film
Tin
1.25 mm
500 µm
Lead Free
2 mm
Production (Last Updated: 1 year ago)
155 °C
125 mW
Not
-55 °C
Surface Mount
2
2
Cut Tape
125 mW
No
No SVHC
10 kΩ
Compliant
8533210045, 8533210045|8533210045, 8533210045|8533210045|8533210045, 8533210045|8533210045|8533210045|8533210045
25 ppm/°C
SMD/SMT
0.1 %
100 V
100 V
1.25 mm
100 V
