ERA-3AEB153V
Manufacturer
Panasonic
Description

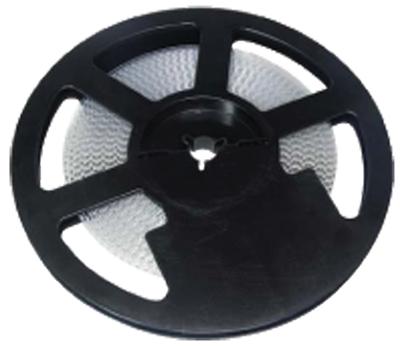

Res Thin Film 0603 15K Ohm 0.1% 1/10W 25ppm/C Molded SMD SMD Punched Carrier T/R
Datasheet
DownloadProduct Attributes
Type
Case/Package
Case Code (Imperial)
Case Code (Metric)
Composition
Contact Plating
Depth
Features
Height
Lead Free
Length
Lifecycle Status
Max Operating Temperature
Max Power Dissipation
Military Standard
Min Operating Temperature
Mount
Number of Pins
Number of Terminations
Packaging
Power Rating
Radiation Hardening
REACH SVHC
Resistance
RoHS
Schedule B
Temperature Coefficient
Termination
Tolerance
Voltage Rating
Voltage Rating (DC)
Width
Description
0603
0603
1608
Thin Film
Tin
800 µm
Automotive AEC-Q200
450 µm
Lead Free
1.6 mm
Production (Last Updated: 1 year ago)
155 °C
100 mW
Not
-55 °C
Surface Mount
2
2
Digi-Reel®
100 mW
No
No SVHC
15 kΩ
Compliant
8533210045, 8533210045|8533210045|8533210045|8533210045|8533210045
25 ppm/°C
SMD/SMT
0.1 %
75 V
75 V
800 µm
