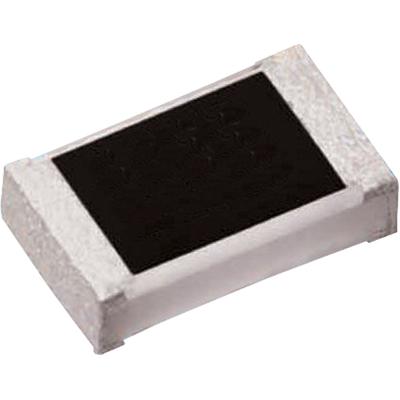

ERA-2AEB472X

Manufacturer

Panasonic

Description

Res Thin Film 0402 4.7K Ohm 0.1% 0.063W 25ppm/C Molded SMD Punched Carrier T/R

Datasheet

download datasheetDownload

Product Attributes

Type

Case/Package

Case Code (Imperial)

Case Code (Metric)

Composition

Contact Plating

Depth

Height

Lead Free

Length

Lifecycle Status

Max Operating Temperature

Max Power Dissipation

Military Standard

Min Operating Temperature

Mount

Number of Pins

Number of Terminations

Packaging

Power Rating

Radiation Hardening

REACH SVHC

Resistance

RoHS

Schedule B

Temperature Coefficient

Termination

Tolerance

Voltage Rating

Voltage Rating (DC)

Width

Description

0402

0402

1005

Thin Film

Tin

500 µm

350 µm

Lead Free

1 mm

Production (Last Updated: 1 year ago)

155 °C

63 mW

Not

-55 °C

Surface Mount

2

2

Cut Tape

63 mW

No

No SVHC

4.7 kΩ

Compliant

8533210045, 8533210045|8533210045, 8533210045|8533210045|8533210045, 8533210045|8533210045|8533210045|8533210045

25 ppm/°C

SMD/SMT

0.1 %

25 V

25 V

508 µm

In Stock

Quantity

MOQ : 6

decrement quantity
increment quantity

Per Unit Price

₹16.89

Total Price

₹101.37

delivery

Ships in 7-10 days from Bengaluru

Add to List

Quantity

Unit Price

Ext. Price

1

₹101.37

₹101.37

10

₹10.66

₹106.62

25

₹9.71

₹242.75

50

₹9.64

₹481.95

100

₹8.66

₹866.08

500

₹6.67

₹3332.72

1000

₹5.80

₹5803.81
