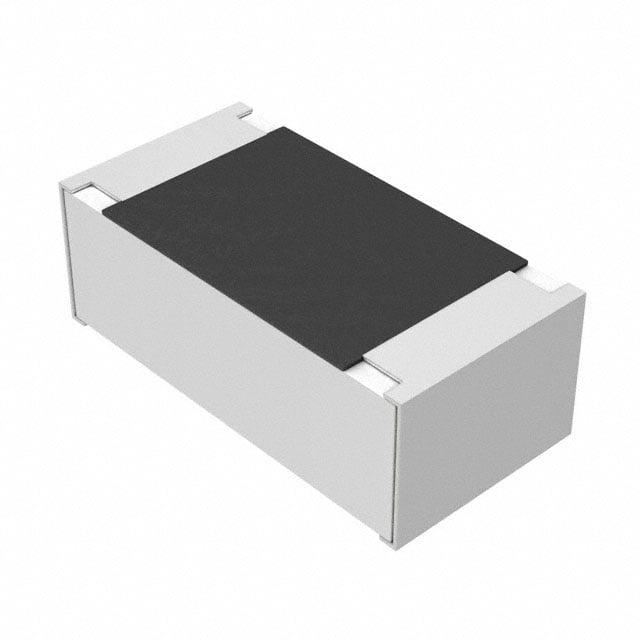

ERA-2AEB104X
Manufacturer
Panasonic
Description
Res Thin Film 0402 100K Ohm 0.1% 0.063W 25ppm/C Molded SMD Punched Carrier T/R
Datasheet
DownloadProduct Attributes
Type
Case/Package
Case Code (Imperial)
Case Code (Metric)
Composition
Contact Plating
Depth
Height
Lead Free
Length
Lifecycle Status
Max Operating Temperature
Max Power Dissipation
Military Standard
Min Operating Temperature
Mount
Number of Pins
Number of Terminations
Packaging
Power Rating
Radiation Hardening
REACH SVHC
Resistance
RoHS
Schedule B
Temperature Coefficient
Termination
Tolerance
Voltage Rating
Voltage Rating (DC)
Width
Description
0402
0402
1005
Thin Film
Tin
500 µm
350 µm
Lead Free
1 mm
Production (Last Updated: 1 year ago)
155 °C
63 mW
Not
-55 °C
Surface Mount
2
2
Cut Tape
63 mW
No
No SVHC
100 kΩ
Compliant
8533210045, 8533210045|8533210045|8533210045|8533210045|8533210045|8533210045|8533210045|8533210045|8533210045|8533210045|8533210045|8533210045|8533210045|8533210045|8533210045|8533210045|8533210045|8533210045|8533210045|8533210045|8533210045|8533210045|8533210045|85
25 ppm/°C
SMD/SMT
0.1 %
25 V
25 V
508 µm
