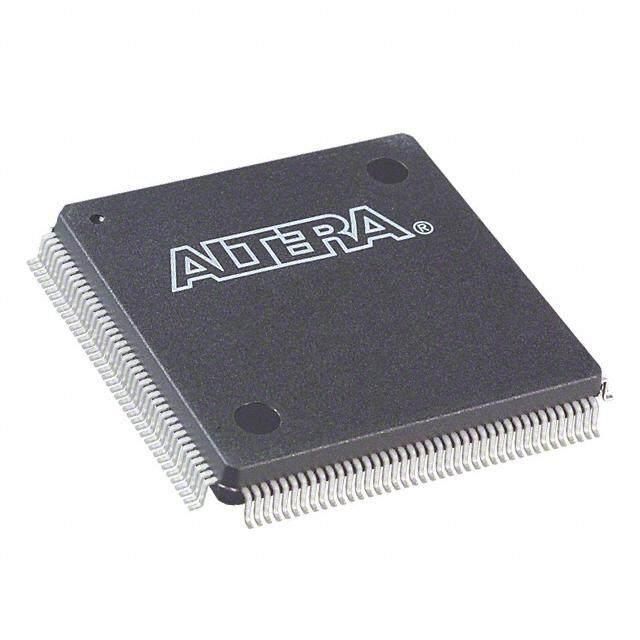

EPM7160SQC160-7
Manufacturer
Intel / Altera
Description
CPLD MAX 7000S Family 3.2K Gates 160 Macro Cells 122MHz 5V 160-Pin PQFP
Datasheet
DownloadProduct Attributes
Type
Case/Package
China RoHS
Clock Rate
Frequency
Height - Seated (Max)
Length
Lifecycle Status
Max Frequency
Max Operating Temperature
Max Supply Voltage
Memory Type
Min Operating Temperature
Min Supply Voltage
Mount
Number of Gates
Number of I/Os
Number of Logic Blocks (LABs)
Number of Logic Elements/Cells
Number of Macrocells
Number of Pins
Number of Programmable I/O
Number of Terminals
Operating Supply Voltage
Propagation Delay
Radiation Hardening
REACH SVHC
RoHS
Schedule B
Speed Grade
Terminal Pitch
Turn-On Delay Time
Width
Description
PQFP
Non-Compliant
166.7 MHz
166.7 MHz
4.07 mm
28 mm
Obsolete (Last Updated: 7 months ago)
149.3 MHz
70 °C
5.25 V
EEPROM
0 °C
4.75 V
Surface Mount
3200
104
10
10
160
160
104
160
5 V
7.5 ns
No
Yes
Non-Compliant
8542390000, 8542390000|8542390000|8542390000|8542390000|8542390000
7
650 µm
7.5 ns
28 mm
Out of Stock
Quantity
MOQ : Unavailable
Per Unit Price
Unavailable
Total Price
Unavailable
Ships in 7-10 days from Bengaluru
