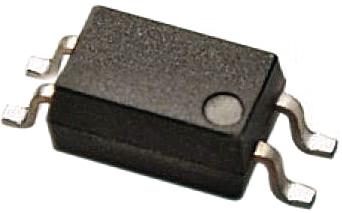

EL3H7(A)(TA)-G

Manufacturer

Everlight

Description

Dc-in 1-CH Transistor Dc-out 4-PIN SSOP T/r / Optoisolator 3.75KV Trans 4-SSOP

Datasheet

download datasheetDownload

Product Attributes

Type

Approvals

Case/Package

Collector Emitter Breakdown Voltage

Collector Emitter Saturation Voltage

Collector Emitter Voltage (VCEO)

Current Transfer Ratio

Fall Time

Forward Current

Forward Voltage

Isolation Voltage

Max Input Current

Max Operating Temperature

Max Power Dissipation

Min Operating Temperature

Mount

Number of Channels

Number of Elements

Number of Pins

Output Current per Channel

Output Voltage

Power Dissipation

Radiation Hardening

Reverse Breakdown Voltage

Rise Time

RoHS

Schedule B

Description

UL

SSOP

80 V

200 mV

80 V

160 %

18 µs

50 mA

1.4 V

3.75 kV

50 mA

125 °C

200 mW

-55 °C

Surface Mount

1

1

4

50 mA

80 V

200 mW

No

6 V

18 µs

Compliant

8541408000, 8541408000|8541408000|8541408000|8541408000|8541408000
