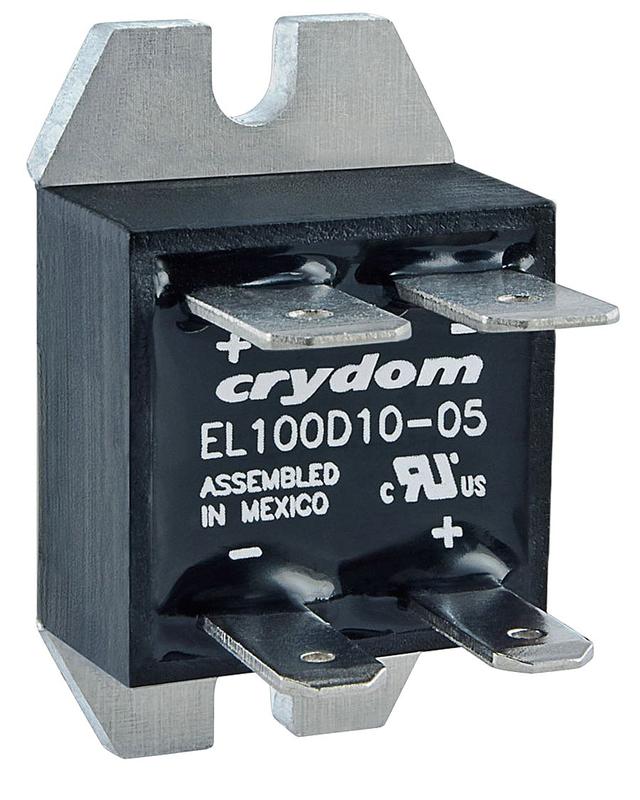

EL100D10-24
Manufacturer
Sensata
Description
SPST Solid State Relay Tab Panel Mount, DC MOSFET, 10 A, 27 V dc
Datasheet
DownloadProduct Attributes
Type
Approvals
Case/Package
Current Rating
Depth
Height
Isolation Voltage
Length
Load Current
Max Operating Temperature
Max Output Current
Max Output Voltage
Max Supply Voltage (DC)
Max Voltage Rating (DC)
Min Operating Temperature
Min Supply Voltage (DC)
Mount
Number of Elements
Number of Pins
On-State Resistance
Operating Supply Voltage
Output Current
Packaging
Radiation Hardening
REACH SVHC
Relay Type
Resistance
RoHS
Termination
Throw Configuration
Turn-On Delay Time
Weight
Width
Description
CE, UL
Module
10 A
21.1 mm
14.3 mm
2.5 kV
35.6 mm
10 A
80 °C
10 A
100 V
100 V
100 V
-30 °C
3 V
Chassis Mount, Panel, Screw
1
4
10 mΩ
100 V
10 A
Bulk
No
Yes
Relay
10 mΩ
Compliant
Quick Connect
SPST
1 ms
14.399999 g
21 mm
In Stock
Quantity
MOQ : 1
Per Unit Price
₹4629.18
Total Price
₹4629.18
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹4629.18
₹4629.18
10
₹4408.03
₹44080.31
25
₹4408.05
₹110201.22
