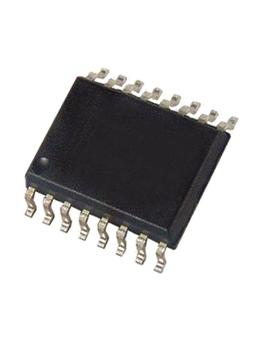

DS26C31TMX/NOPB
Manufacturer
Texas Instruments
Description
CMOS Quad T I-STATE Differential Line Drivers 16-SOIC -40 to 85
Product Attributes
Type
Ambient Temperature Range High
Case/Package
Contact Plating
Data Rate
ESD Protection
Height
Interface
Lead Free
Length
Lifecycle Status
Manufacturer Lifecycle Status
Max Operating Temperature
Max Power Dissipation
Max Supply Voltage
Min Operating Temperature
Min Supply Voltage
Mount
Number of Drivers
Number of Pins
Number of Transmitters
Operating Supply Current
Operating Supply Voltage
Output Current
Output Voltage
Packaging
Propagation Delay
Radiation Hardening
REACH SVHC
RoHS
Schedule B
Simplex/Duplex
Thickness
Weight
Width
Description
85 °C
SOIC
Tin
30 Mbps
No
1.75 mm
RS-422
Lead Free
9.9 mm
Production (Last Updated: 4 days ago)
ACTIVE (Last Updated: 4 days ago)
85 °C
1.226 W
5.5 V
-40 °C
4.5 V
Surface Mount
4
16
4
2 mA
5 V
150 mA
1.8 V
Tape and Reel
11 ns
No
No SVHC
Compliant
8542390000|8542390000
Half Duplex
1.58 mm
155.100241 mg
3.91 mm
