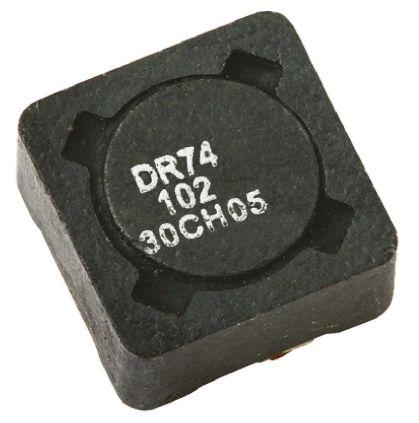

DR74-101-R
Manufacturer
Eaton
Description
Inductor Power Shielded Drum Core 100uH 20% 100KHz Ferrite 860mA 383mOhm DCR T/R
Datasheet
DownloadProduct Attributes
Type
Case/Package
Composition
Core Material
Current Rating
DC Current
DC Resistance (DCR)
Depth
Height
Height - Seated (Max)
Inductance
Inductance Tolerance
Lead Free
Length
Max DC Current
Max Operating Temperature
Military Standard
Min Operating Temperature
Mount
Number of Pins
Packaging
Radiation Hardening
REACH SVHC
Resistance
RMS Current (Irms)
RoHS
Saturation Current
Schedule B
Self Resonant Frequency
Series Resistance
Shielding
Termination
Test Frequency
Tolerance
Weight
Width
Description
Nonstandard
Wirewound
Ferrite
860 mA
860 mA
383 mΩ
7.6 mm
4.35 mm
4.3434 mm
100 µH
20 %
Lead Free
7.6 mm
990 mA
125 °C
Not
-40 °C
Surface Mount
2
Cut Tape
No
No
383 mΩ
860 mA
Compliant
990 mA
8504500000, 8504500000|8504500000|8504500000|8504500000|8504500000|8504500000|8504500000|8504500000|8504500000|8504500000|8504500000|8504500000|8504500000|8504500000|8504500000|8504500000|8504500000|8504500000|8504500000|8504500000|8504500000|8504500000|8504500000|85
100 kHz
383 mΩ
Shielded
SMD/SMT
100 kHz
20 %
1.360777 g
7.5946 mm
In Stock
Quantity
MOQ : 2
Per Unit Price
₹73.04
Total Price
₹146.08
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹146.08
₹146.08
10
₹60.64
₹606.43
25
₹60.57
₹1514.31
50
₹60.59
₹3029.50
100
₹47.04
₹4703.87
500
₹47.04
₹23517.56
1000
₹47.04
₹47036.01
