DNBT8105-7
Manufacturer
Diodes Inc.
Description

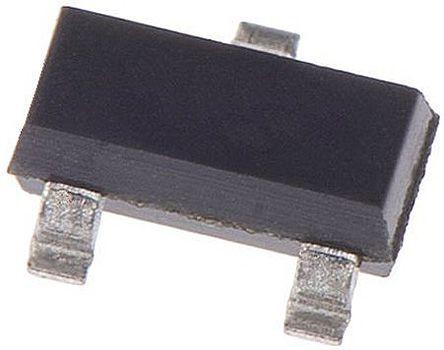

DNBT8105 Series NPN 60 V 600 mW Small Signal Transistor SMT - SOT-23-3
Datasheet
DownloadProduct Attributes
Type
Case/Package
Collector Base Voltage (VCBO)
Collector Emitter Breakdown Voltage
Collector Emitter Saturation Voltage
Collector Emitter Voltage (VCEO)
Contact Plating
Current Rating
Element Configuration
Emitter Base Voltage (VEBO)
Frequency
Gain Bandwidth Product
Height
hFE Min
Lead Free
Length
Max Breakdown Voltage
Max Collector Current
Max Junction Temperature (Tj)
Max Operating Temperature
Max Power Dissipation
Min Operating Temperature
Mount
Number of Elements
Number of Pins
Number of Terminals
Packaging
Polarity
Power Dissipation
Radiation Hardening
REACH SVHC
RoHS
Schedule B
Transition Frequency
Voltage Rating (DC)
Weight
Width
Description
SOT-23
80 V
60 V
500 mV
60 V
Tin
1 A
Single
5 V
150 MHz
150 MHz
1 mm
30
Lead Free
2.9 mm
60 V
1 A
150 °C
150 °C
600 mW
-55 °C
Surface Mount
1
3
3
Cut Tape
NPN
600 mW
No
No SVHC
Compliant
8541210080, 8541210080|8541210080|8541210080|8541210080|8541210080
150 MHz
60 V
7.994566 mg
1.3 mm
Product Attributes
Type
Case/Package
Collector Base Voltage (VCBO)
Collector Emitter Breakdown Voltage
Collector Emitter Saturation Voltage
Collector Emitter Voltage (VCEO)
Contact Plating
Current Rating
Element Configuration
Emitter Base Voltage (VEBO)
Frequency
Gain Bandwidth Product
Height
hFE Min
Lead Free
Length
Max Breakdown Voltage
Max Collector Current
Max Junction Temperature (Tj)
Max Operating Temperature
Max Power Dissipation
Min Operating Temperature
Mount
Number of Elements
Number of Pins
Number of Terminals
Packaging
Polarity
Power Dissipation
Radiation Hardening
REACH SVHC
RoHS
Schedule B
Transition Frequency
Voltage Rating (DC)
Weight
Width
Description
SOT-23
80 V
60 V
500 mV
60 V
Tin
1 A
Single
5 V
150 MHz
150 MHz
1 mm
30
Lead Free
2.9 mm
60 V
1 A
150 °C
150 °C
600 mW
-55 °C
Surface Mount
1
3
3
Cut Tape
NPN
600 mW
No
No SVHC
Compliant
8541210080, 8541210080|8541210080|8541210080|8541210080|8541210080
150 MHz
60 V
7.994566 mg
1.3 mm
