DMG2307L-7
Manufacturer
Diodes Inc.
Description

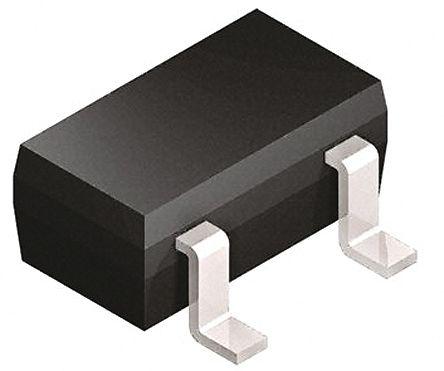

P Channel 30 V 90 mO 1.36 W 8.2 nC Surface Mount Power MosFet - SOT-23
Datasheet
DownloadProduct Attributes
Type
Case/Package
Continuous Drain Current (ID)
Drain to Source Breakdown Voltage
Drain to Source Resistance
Drain to Source Voltage (Vdss)
Element Configuration
Fall Time
Gate to Source Voltage (Vgs)
Height
Input Capacitance
Lead Free
Length
Max Junction Temperature (Tj)
Max Operating Temperature
Max Power Dissipation
Min Operating Temperature
Mount
Number of Channels
Number of Elements
Number of Pins
Packaging
Power Dissipation
Radiation Hardening
Rds On Max
REACH SVHC
Rise Time
RoHS
Schedule B
Turn-Off Delay Time
Turn-On Delay Time
Weight
Width
Description
SOT-23
-2.5 A
-30 V
70 mΩ
-30 V
Single
13.4 ns
20 V
1 mm
371.3 pF
Lead Free
3 mm
150 °C
150 °C
760 mW
-55 °C
Surface Mount
1
1
3
Tape & Reel
760 mW
No
90 mΩ
No SVHC
7.3 ns
Compliant
8541290080
22.4 ns
4.8 ns
7.994566 mg
1.4 mm
Product Attributes
Type
Case/Package
Continuous Drain Current (ID)
Drain to Source Breakdown Voltage
Drain to Source Resistance
Drain to Source Voltage (Vdss)
Element Configuration
Fall Time
Gate to Source Voltage (Vgs)
Height
Input Capacitance
Lead Free
Length
Max Junction Temperature (Tj)
Max Operating Temperature
Max Power Dissipation
Min Operating Temperature
Mount
Number of Channels
Number of Elements
Number of Pins
Packaging
Power Dissipation
Radiation Hardening
Rds On Max
REACH SVHC
Rise Time
RoHS
Schedule B
Turn-Off Delay Time
Turn-On Delay Time
Weight
Width
Description
SOT-23
-2.5 A
-30 V
70 mΩ
-30 V
Single
13.4 ns
20 V
1 mm
371.3 pF
Lead Free
3 mm
150 °C
150 °C
760 mW
-55 °C
Surface Mount
1
1
3
Tape & Reel
760 mW
No
90 mΩ
No SVHC
7.3 ns
Compliant
8541290080
22.4 ns
4.8 ns
7.994566 mg
1.4 mm
