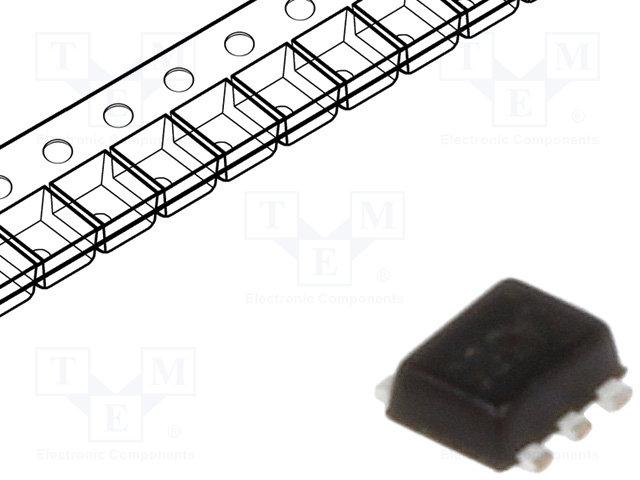

DMC2400UV-7
Manufacturer
Diodes Inc.
Description
Mosfet N/p-ch 20V SOT563 / Trans Mosfet N/p-ch 20V 1.030A/0.7A 6-PIN SOT-563 T/r
Datasheet
DownloadProduct Attributes
Type
Case/Package
Contact Plating
Continuous Drain Current (ID)
Drain to Source Breakdown Voltage
Drain to Source Resistance
Drain to Source Voltage (Vdss)
Height
Input Capacitance
Lead Free
Length
Max Junction Temperature (Tj)
Max Operating Temperature
Max Power Dissipation
Min Operating Temperature
Mount
Number of Channels
Number of Elements
Number of Pins
Power Dissipation
Radiation Hardening
Rds On Max
REACH SVHC
RoHS
Schedule B
Turn-Off Delay Time
Turn-On Delay Time
Width
Description
SOT-563
Tin
1.03 A
20 V
970 mΩ
20 V
600 µm
37.1 pF
Lead Free
1.7 mm
150 °C
150 °C
450 mW
-55 °C
Surface Mount
2
1
6
450 mW
No
480 mΩ
No SVHC
Compliant
8541290080
13.74 ns
4.06 ns
1.25 mm
