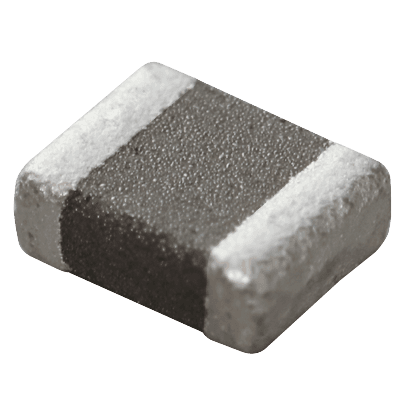

DFE252012P-1R0M=P2
Manufacturer
Murata
Description
Inductor Power Shielded Wirewound 1uH 20% 1MHz Metal Alloy 3.2A 0.042Ohm DCR 1008 T/R
Datasheet
DownloadProduct Attributes
Type
Case/Package
Case Code (Imperial)
Case Code (Metric)
Composition
Core Material
Current Rating
DC Resistance (DCR)
Depth
Height
Height - Seated (Max)
Inductance
Inductance Tolerance
Length
Lifecycle Status
Manufacturer Lifecycle Status
Max DC Current
Max Operating Temperature
Min Operating Temperature
Mount
RMS Current (Irms)
RoHS
Saturation Current
Schedule B
Series Resistance
Shielding
Test Frequency
Tolerance
Width
Description
1008
1008
2520
Wirewound
Ferrite
3.2 A
42 mΩ
2 mm
1.2 mm
990.6 µm
1 µH
20 %
2.4892 mm
Production (Last Updated: 4 years ago)
IN PRODUCTION (Last Updated: 4 years ago)
3.2 A
125 °C
-40 °C
Surface Mount
3.2 A
Compliant
4.3 A
8504500000, 8504500000|8504500000|8504500000|8504500000|8504500000
42 mΩ
Shielded
1 MHz
20 %
2.0066 mm
