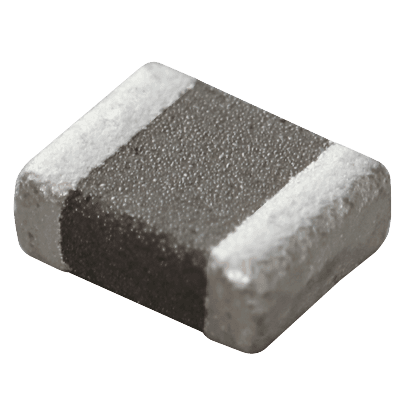

DFE252012F-1R0M=P2
Manufacturer
Murata
Description
Inductor Power Chip Shielded Wirewound 1uH 20% 1MHz Metal 3.3A 0.04Ohm DCR 1008 T/R
Datasheet
DownloadProduct Attributes
Type
Case/Package
Case Code (Imperial)
Case Code (Metric)
Composition
Core Material
Current Rating
DC Resistance (DCR)
Height
Height - Seated (Max)
Inductance
Inductance Tolerance
Length
Lifecycle Status
Manufacturer Lifecycle Status
Max Operating Temperature
Min Operating Temperature
Mount
RMS Current (Irms)
RoHS
Saturation Current
Schedule B
Series Resistance
Shielding
Test Frequency
Tolerance
Width
Description
1008
1008
2520
Wirewound
Ferrite
3.3 A
40 mΩ
1.2 mm
1.1938 mm
1 µH
20 %
2.4892 mm
Production (Last Updated: 1 month ago)
IN PRODUCTION (Last Updated: 1 month ago)
125 °C
-40 °C
Surface Mount
3.3 A
Compliant
4.7 A
8504500000, 8504500000|8504500000, 8504500000|8504500000|8504500000, 8504500000|8504500000|8504500000|8504500000
40 mΩ
Shielded
1 MHz
20 %
2.0066 mm
In Stock
Quantity
MOQ : 4
Per Unit Price
₹32.90
Total Price
₹131.60
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹131.60
₹131.60
10
₹21.70
₹216.97
25
₹21.64
₹541.08
50
₹20.73
₹1036.34
100
₹16.85
₹1685.03
500
₹16.80
₹8399.38
1000
₹15.56
₹15559.22
