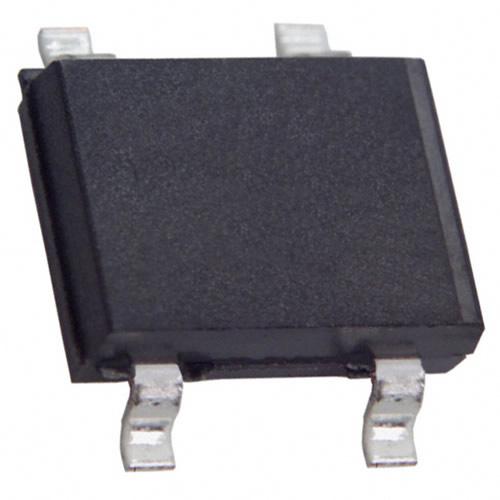

DF1506S-T
Manufacturer
Diodes Inc.
Description
DF1506S Series 1.5 A 600 V Bridge Rectifier Surface Mount - DFS-4
Datasheet
DownloadProduct Attributes
Type
Average Rectified Current
Capacitance
Case/Package
Current Rating
Element Configuration
Forward Current
Forward Voltage
Height
Lead Free
Length
Max Forward Surge Current (Ifsm)
Max Operating Temperature
Max Repetitive Reverse Voltage (Vrrm)
Max Surge Current
Min Operating Temperature
Mount
Number of Elements
Number of Pins
Output Current
Packaging
Peak Non-Repetitive Surge Current
Peak Reverse Current
Radiation Hardening
Reverse Voltage (DC)
RoHS
Schedule B
Termination
Voltage Rating (DC)
Weight
Width
Description
1.5 A
25 pF
SMD/SMT
1.5 A
Single
1.5 A
1.1 V
3.4 mm
Lead Free
8.51 mm
50 A
150 °C
600 V
50 A
-65 °C
Surface Mount
1
4
1.5 A
Cut Tape
50 A
10 µA
No
420 V
Compliant
8541100080, 8541100080|8541100080|8541100080|8541100080|8541100080
SMD/SMT
600 V
299.00242 mg
6.5 mm
In Stock
Quantity
MOQ : 2
Per Unit Price
₹56.02
Total Price
₹112.04
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹112.04
₹112.04
10
₹38.24
₹382.36
25
₹38.24
₹955.89
50
₹38.25
₹1912.67
100
₹27.41
₹2740.51
500
₹24.69
₹12347.43
1000
₹22.17
₹22168.65
