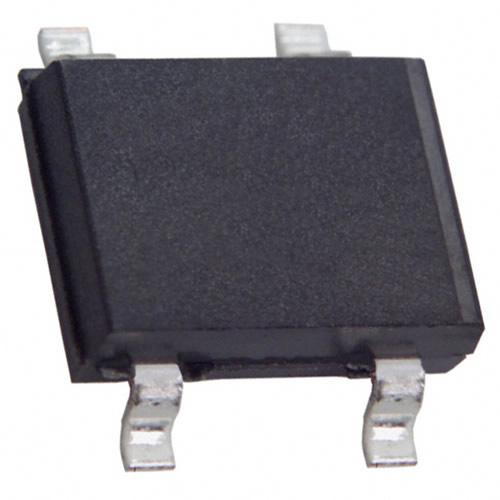

DF01S-T
Manufacturer
Diodes Inc.
Description
Diode Rectifier Bridge Single 100V 1A 4-Pin Case DF-S T/R
Datasheet
DownloadProduct Attributes
Type
Average Rectified Current
Case/Package
Element Configuration
Forward Current
Forward Voltage
Height
Lead Free
Length
Max Forward Surge Current (Ifsm)
Max Operating Temperature
Max Repetitive Reverse Voltage (Vrrm)
Max Surge Current
Min Operating Temperature
Mount
Number of Elements
Number of Pins
Peak Non-Repetitive Surge Current
Peak Reverse Current
Radiation Hardening
Reverse Voltage (DC)
RoHS
Schedule B
Termination
Weight
Width
Description
1 A
SMD/SMT
Single
1 A
1.1 V
3.4 mm
Lead Free
8.51 mm
50 A
150 °C
100 V
50 A
-65 °C
Surface Mount
1
4
50 A
10 µA
No
70 V
Compliant
8541100080, 8541100080|8541100080|8541100080|8541100080|8541100080
SMD/SMT
299.00242 mg
6.5 mm
In Stock
Quantity
MOQ : 2
Per Unit Price
₹52.46
Total Price
₹104.93
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹104.93
₹104.93
10
₹27.26
₹272.64
25
₹27.26
₹681.59
50
₹27.26
₹1363.18
100
₹17.99
₹1798.67
500
₹13.96
₹6981.75
1000
₹10.75
₹10753.50
