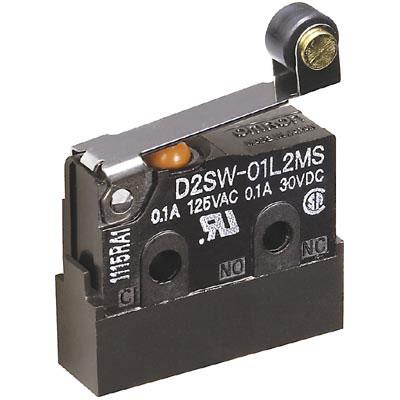

D2SW-01L2MS
Manufacturer
Omron
Description
Switch Snap Action N.O./N.C. SPDT Hinge Roller Lever 0.1A 125VAC 30VDC 0.59N Screw Mount Wire Lead
Datasheet
DownloadProduct Attributes
Type
Actuator Material
Ambient Temperature Range High
Approvals
Case/Package
Contact Current Rating
Contact Material
Contact Resistance
Contact Voltage Rating (AC)
Current Rating
Depth
Differential Travel
Electrical Life
Height
Lead Free
Length
Life (Cycles)
Lifecycle Status
Max Current Rating
Max Operating Temperature
Max Voltage Rating (AC)
Max Voltage Rating (DC)
Mechanical Life
Min Operating Temperature
Mount
Number of Poles
Number of Positions
Operating Force
Operating Position
Orientation
Overtravel
Radiation Hardening
Ratings
RoHS
Schedule B
Sealable
Switch Function
Termination
Throw Configuration
Voltage Rating (AC)
Voltage Rating (DC)
Weight
Description
Polyacetal, Stainless Steel
85 °C
CSA, IEC, UL
100
100 mA
Gold
70 mΩ
125 V
100 mA
6.4 mm
787.4 µm
200 kcycles
16.9 mm
Lead Free
21.2 mm
200 kcycles
Production (Last Updated: 7 months ago)
100 mA
85 °C
125 V
30 V
5 Mcycles
-40 °C
Chassis Mount, Panel, Screw, Wire
1
2
580 mN
14.5034 mm
Straight
1.016 mm
No
Dust Tight, IP67, Waterproof
Compliant
8536509040, 8536509040|8536509040, 8536509040|8536509040|8536509040, 8536509040|8536509040|8536509040|8536509040
IP67
On-Mom
Wire Leads
SPDT
125 V
30 V
10 g
In Stock
Quantity
MOQ : 1
Per Unit Price
₹683.79
Total Price
₹683.79
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹683.79
₹683.79
10
₹566.78
₹5667.76
25
₹525.98
₹13149.49
50
₹497.10
₹24854.92
100
₹497.08
₹49708.06
500
₹434.97
₹217484.09
1000
₹434.97
₹434968.19
