D09P13A6RV09LF
Manufacturer
Amphenol Communications Solutions
Description

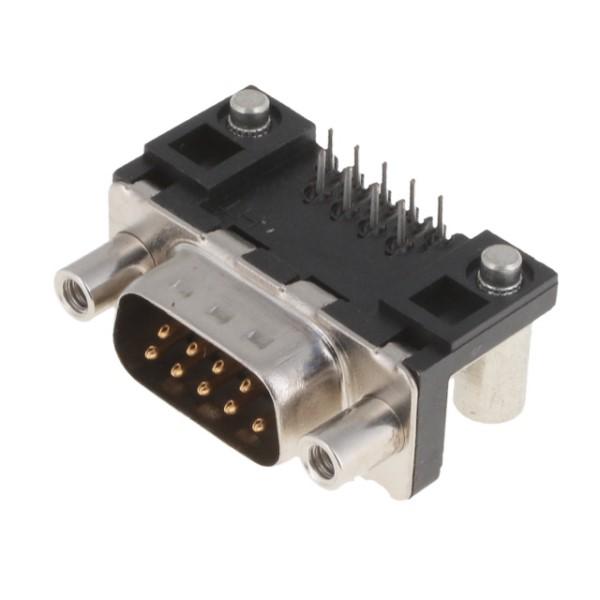

Standard D Sub Connector, Right Angle, D Series, DE, Plug, 9, Steel Body, Solder
Datasheet
DownloadProduct Attributes
Type
Connector Type
Contact Plating
Contact Resistance
Depth
Gender
Housing Material
Insulation Resistance
Length
Material
Max Operating Temperature
Max Supply Voltage (AC)
Max Voltage Rating (AC)
Min Operating Temperature
Mount
Number of Contacts
Number of Ports
Number of Positions
Number of Rows
Number of Terminals
Orientation
Pitch
RoHS
Termination
Description
D-Sub, Plug, Signal
Gold, Tin
10 mΩ
20.85 mm
Male
Nylon
5 GΩ
30.81 mm
Steel
125 °C
300 V
300 V
-55 °C
Through Hole
9
1
9
2
9
Right Angle
2.74 mm
Compliant
Solder
In Stock
Quantity
MOQ : 1
Per Unit Price
₹312.11
Total Price
₹312.11
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹312.11
₹312.11
10
₹254.93
₹2549.34
25
₹254.92
₹6372.90
50
₹231.15
₹11557.51
100
₹209.69
₹20969.11
Product Attributes
Type
Connector Type
Contact Plating
Contact Resistance
Depth
Gender
Housing Material
Insulation Resistance
Length
Material
Max Operating Temperature
Max Supply Voltage (AC)
Max Voltage Rating (AC)
Min Operating Temperature
Mount
Number of Contacts
Number of Ports
Number of Positions
Number of Rows
Number of Terminals
Orientation
Pitch
RoHS
Termination
Description
D-Sub, Plug, Signal
Gold, Tin
10 mΩ
20.85 mm
Male
Nylon
5 GΩ
30.81 mm
Steel
125 °C
300 V
300 V
-55 °C
Through Hole
9
1
9
2
9
Right Angle
2.74 mm
Compliant
Solder
