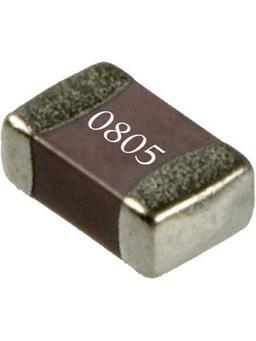

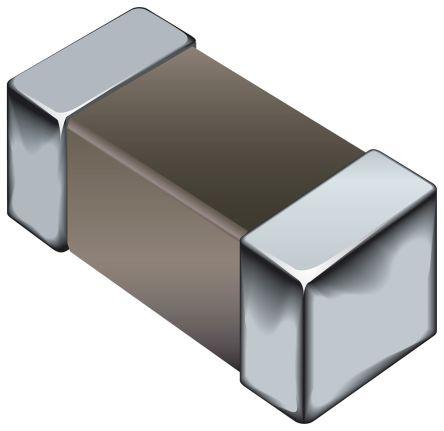

CV201210-100K
Manufacturer
Bourns
Description
Inductor RF Shielded Multi-Layer 10uH 10% 2MHz 45Q-Factor Ferrite 0.015A 1.15Ohm DCR 0805 T/R
Datasheet
DownloadProduct Attributes
Type
Case/Package
Case Code (Imperial)
Case Code (Metric)
Core Material
Current
Current Rating
DC Current
DC Resistance (DCR)
Depth
Height
Height - Seated (Max)
Inductance
Inductance Tolerance
Length
Lifecycle Status
Max Current Rating
Max DC Current
Max Operating Temperature
Military Standard
Min Operating Temperature
Mount
Number of Circuits
Number of Terminals
Q Factor
REACH SVHC
RoHS
Schedule B
Self Resonant Frequency
Shielding
Termination
Test Frequency
Tolerance
Width
Description
0805
0805
2012
Ferrite
5 mA
15 mA
15 mA
1.15 Ω
1.45 mm
1.25 mm
1.4478 mm
10 µH
10 %
2.0066 mm
Production (Last Updated: 7 months ago)
15 mA
15 mA
125 °C
Not
-55 °C
Surface Mount
1
2
45
Yes
Compliant
8504500000, 8504500000|8504500000, 8504500000|8504500000|8504500000, 8504500000|8504500000|8504500000|8504500000
24 MHz
Yes
SMD/SMT
2 MHz
10 %
1.25 mm
In Stock
Quantity
MOQ : 10
Per Unit Price
₹10.67
Total Price
₹106.70
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹106.70
₹106.70
10
₹10.21
₹102.08
25
₹5.76
₹144.05
50
₹5.73
₹286.67
100
₹4.59
₹458.83
500
₹4.25
₹2123.06
1000
₹3.89
₹3894.70
