CSD17308Q3
Manufacturer
Texas Instruments
Description

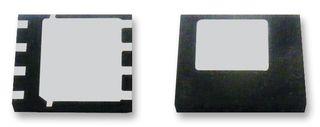

30-V, N channel NexFET power MOSFET, single SON 3 mm x 3 mm, 11.8 mOhm 8-VSON-CLIP -55 to 150
Product Attributes
Type
Contact Plating
Continuous Drain Current (ID)
Drain to Source Breakdown Voltage
Drain to Source Resistance
Drain to Source Voltage (Vdss)
Element Configuration
Fall Time
Gate to Source Voltage (Vgs)
Height
Input Capacitance
Lead Free
Length
Lifecycle Status
Manufacturer Lifecycle Status
Max Junction Temperature (Tj)
Max Operating Temperature
Max Power Dissipation
Min Operating Temperature
Mount
Nominal Vgs
Number of Channels
Number of Elements
Number of Pins
Packaging
Power Dissipation
Radiation Hardening
Rds On Max
REACH SVHC
Rise Time
RoHS
Schedule B
Thickness
Threshold Voltage
Turn-Off Delay Time
Turn-On Delay Time
Width
Description
Tin
14 A
30 V
8.2 mΩ
30 V
Single
2.3 ns
10 V
1.1 mm
700 pF
Contains Lead
3.3 mm
Production (Last Updated: 4 days ago)
ACTIVE (Last Updated: 4 days ago)
150 °C
150 °C
2.7 W
-55 °C
Surface Mount
1.3 V
1
1
8
Digi-Reel®
2.7 W
No
10.3 mΩ
No SVHC
5.7 ns
Compliant
8541290080, 8541290080|8541290080|8541290080|8541290080|8541290080
1 mm
1.3 V
9.9 ns
4.5 ns
3.3 mm
