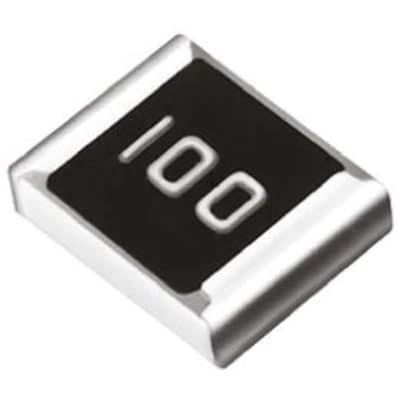

CR1206-JW-103ELF
Manufacturer
Bourns
Description
Res Thick Film 1206 10K Ohm 5% 0.25W(1/4W) 200ppm/C Pad SMD T/R
Datasheet
DownloadProduct Attributes
Type
Case/Package
Case Code (Imperial)
Case Code (Metric)
Composition
Contact Plating
Depth
Features
Height
Length
Max Operating Temperature
Max Power Dissipation
Military Standard
Min Operating Temperature
Mount
Number of Pins
Number of Terminations
Packaging
Power Rating
Radiation Hardening
REACH SVHC
Resistance
RoHS
Schedule B
Temperature Coefficient
Termination
Thickness
Tolerance
Voltage Rating
Voltage Rating (DC)
Width
Description
1206
1206
3216
Thick Film
Tin
1.6 mm
Moisture Resistant
600 µm
3.2 mm
155 °C
250 mW
Not
-55 °C
Surface Mount
2
2
Cut Tape
250 mW
No
No SVHC
10 kΩ
Compliant
8533210045, 8533210045|8533210045, 8533210045|8533210045|8533210045, 8533210045|8533210045|8533210045|8533210045
200 ppm/°C
SMD/SMT
610 µm
5 %
200 V
200 V
1.6 mm
