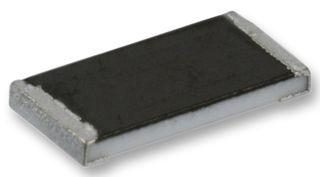

CR0805-FX-1502ELF
Manufacturer
Bourns
Description
Res Thick Film 0805 15K Ohm 1% 1/8W 100ppm/C Molded SMD SMD Paper Tape on Plastic Reel
Datasheet
DownloadProduct Attributes
Type
Case/Package
Case Code (Imperial)
Case Code (Metric)
Composition
Contact Plating
Depth
Features
Height
Max Operating Temperature
Max Power Dissipation
Military Standard
Min Operating Temperature
Mount
Number of Terminations
Power Rating
Radiation Hardening
REACH SVHC
Resistance
RoHS
Schedule B
Temperature Coefficient
Termination
Thickness
Tolerance
Voltage Rating
Voltage Rating (DC)
Description
0805
0805
2012
Thick Film
Tin
1.25 mm
Moisture Resistant
600 µm
155 °C
125 mW
Not
-55 °C
Surface Mount
2
125 mW
No
No SVHC
15 kΩ
Compliant
8533210045, 8533210045|8533210045|8533210045|8533210045|8533210045
100 ppm/°C
SMD/SMT
508 µm
1 %
150 V
150 V
