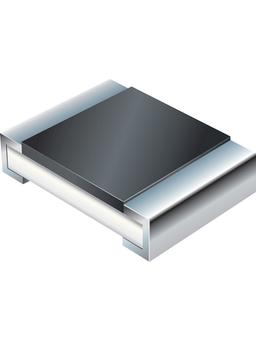

CR0603-JW-101ELF
Manufacturer
Bourns
Description
Res Thick Film 0603 100 Ohm 5% 1/10W 200ppm/C Molded SMD SMD Paper Tape on Plastic Reel
Datasheet
DownloadProduct Attributes
Type
Case/Package
Case Code (Imperial)
Case Code (Metric)
Composition
Contact Plating
Depth
Features
Height
Length
Max Operating Temperature
Max Power Dissipation
Military Standard
Min Operating Temperature
Mount
Number of Pins
Number of Terminations
Packaging
Power Rating
Radiation Hardening
REACH SVHC
Resistance
RoHS
Schedule B
Temperature Coefficient
Termination
Thickness
Tolerance
Voltage Rating
Voltage Rating (DC)
Width
Description
0603
0603
1608
Thick Film
Tin
800 µm
Moisture Resistant
450 µm
1.6 mm
155 °C
100 mW
Not
-55 °C
Surface Mount
2
2
Cut Tape
100 mW
No
No SVHC
100 Ω
Compliant
8533210025|8533210025|8533210025|8533210025|8533210025, 8533210045
200 ppm/°C
SMD/SMT
457 µm
5 %
50 V
50 V
800 µm
