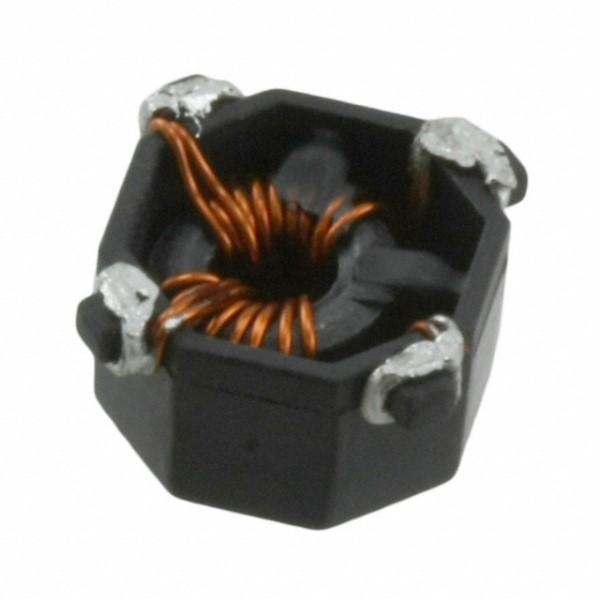

CMS2-4-R
Manufacturer
Eaton
Description
Common Mode Choke, 2.8A, 102H Inductance, 19m DCR, 0.8H Leakage Inductance, 8.89x8.89x6mm
Datasheet
DownloadProduct Attributes
Type
Approvals
Case/Package
Coil Resistance
Contact Plating
Core Material
Current
Current Rating
DC Current
DC Resistance (DCR)
Depth
Element Configuration
Height
Inductance
Lead Free
Length
Lifecycle Status
Max DC Current
Max Operating Temperature
Military Standard
Min Operating Temperature
Mount
Number of Lines
Number of Pins
Number of Terminals
Packaging
Radiation Hardening
REACH SVHC
Resistance
RoHS
Schedule B
Shielding
Termination
Test Frequency
Weight
Width
Description
UL
SMD/SMT
19 mΩ
Tin
Ferrite
2.8 A
2.8 A
2.8 A
19 mΩ
11.43 mm
Dual
6 mm
102 µH
Lead Free
8.89 mm
Production (Last Updated: 7 months ago)
2.8 A
160 °C
Not
-40 °C
Surface Mount
2
4
4
Tape and Reel
No
Yes
19 mΩ
Compliant
8504500000, 8504500000|8504500000|8504500000|8504500000|8504500000|8504500000|8504500000|8504500000|8504500000|8504500000|8504500000|8504500000|8504500000|8504500000|8504500000|8504500000|8504500000|8504500000|8504500000|8504500000|8504500000|8504500000|8504500000|85
Unshielded
SMD/SMT
100 kHz
1.360777 g
8.89 mm
In Stock
Quantity
MOQ : 1
Per Unit Price
₹374.35
Total Price
₹374.35
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹374.35
₹374.35
10
₹249.60
₹2495.98
25
₹249.58
₹6239.52
50
₹249.58
₹12479.03
100
₹229.32
₹22931.58
500
₹200.51
₹100257.30
1000
₹185.35
₹185352.85
