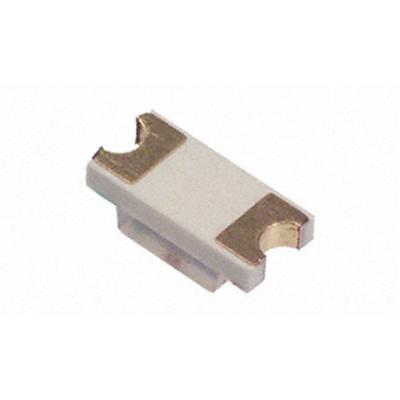

CMD15-21VRD/TR8
Manufacturer
VCC
Description
CMD15-21 Series, multiple colors, bi-color option, 1206 package size (solder pad geometry 3)
Datasheet
DownloadProduct Attributes
Type
Case/Package
Case Code (Imperial)
Case Code (Metric)
Color
Forward Current
Forward Voltage
Height
Illumination Color
Length
Lens Style
Luminous Intensity
Max Operating Temperature
Min Operating Temperature
Mount
Number of LEDs
Number of Pins
Power Dissipation
REACH SVHC
Reverse Voltage
RoHS
Schedule B
Test Current
Viewing Angle
Voltage
Wavelength
Width
Description
1206
1206
3216
Red
20 mA
2 V
1.1 mm
Red
3.2 mm
Colored, Diffused, Rectangular, Tinted
4 mcd
85 °C
-40 °C
Surface Mount
1
2
105 mW
Unknown
5 V
Compliant
8541402000, 8541402000|8541402000, 8541402000|8541402000|8541402000, 8541402000|8541402000|8541402000|8541402000
20 mA
160 °
3.8 V
640 nm
1.5 mm
Product Attributes
Type
Case/Package
Case Code (Imperial)
Case Code (Metric)
Color
Forward Current
Forward Voltage
Height
Illumination Color
Length
Lens Style
Luminous Intensity
Max Operating Temperature
Min Operating Temperature
Mount
Number of LEDs
Number of Pins
Power Dissipation
REACH SVHC
Reverse Voltage
RoHS
Schedule B
Test Current
Viewing Angle
Voltage
Wavelength
Width
Description
1206
1206
3216
Red
20 mA
2 V
1.1 mm
Red
3.2 mm
Colored, Diffused, Rectangular, Tinted
4 mcd
85 °C
-40 °C
Surface Mount
1
2
105 mW
Unknown
5 V
Compliant
8541402000, 8541402000|8541402000, 8541402000|8541402000|8541402000, 8541402000|8541402000|8541402000|8541402000
20 mA
160 °
3.8 V
640 nm
1.5 mm
