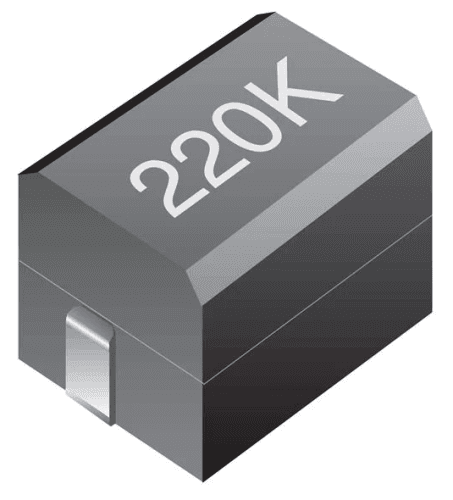

CM453232-221KL
Manufacturer
Bourns
Description
Ind General Purpose Chip Wirewound 220uH 10% 796KHz 40Q-Factor Ferrite 100mA 4.5 x 3.2 mm T/R
Datasheet
DownloadProduct Attributes
Type
Case/Package
Case Code (Imperial)
Case Code (Metric)
China RoHS
Composition
Core Material
Current
Current Rating
DC Current
DC Resistance (DCR)
Depth
Height
Height - Seated (Max)
Inductance
Inductance Tolerance
Length
Lifecycle Status
Max Current Rating
Max DC Current
Max Operating Temperature
Military Standard
Min Operating Temperature
Mount
Number of Circuits
Number of Pins
Number of Terminals
Packaging
Q Factor
REACH SVHC
Resistance
RoHS
Schedule B
Self Resonant Frequency
Series Resistance
Shielding
Termination
Test Frequency
Tolerance
Weight
Width
Description
1812
1812
4532
Compliant
Wirewound
Ferrite
50 mA
100 mA
100 mA
10 Ω
3.4 mm
3.2 mm
3.4036 mm
220 µH
10 %
4.5 mm
Production (Last Updated: 7 months ago)
100 mA
100 mA
125 °C
Not
-40 °C
Surface Mount
1
2
2
Cut Tape
40
Yes
10 Ω
Compliant
8504500000, 8504500000|8504500000, 8504500000|8504500000|8504500000, 8504500000|8504500000|8504500000|8504500000
4 MHz
10 Ω
No
SMD/SMT
796 kHz
10 %
26.988746 mg
3.2 mm
In Stock
Quantity
MOQ : 3
Per Unit Price
₹35.57
Total Price
₹106.70
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹106.70
₹106.70
10
₹23.03
₹230.30
25
₹23.01
₹575.31
50
₹22.99
₹1149.74
100
₹15.05
₹1504.53
500
₹15.04
₹7519.07
1000
₹14.08
₹14078.70
