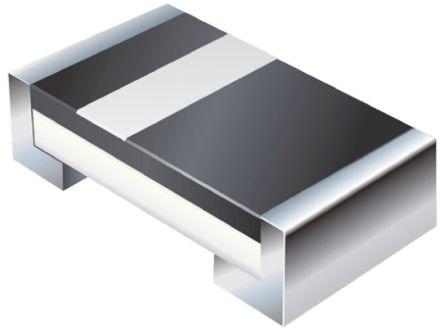

CD1206-S01575
Manufacturer
Bourns
Description
Rectifier Diode Small Signal Switching 100V 0.15A 4ns 2-Pin Case 1206(3216Metric) T/R
Datasheet
DownloadProduct Attributes
Type
Average Rectified Current
Case/Package
Case Code (Imperial)
Case Code (Metric)
Contact Plating
Element Configuration
Forward Current
Forward Voltage
Height
Length
Max Forward Surge Current (Ifsm)
Max Operating Temperature
Max Repetitive Reverse Voltage (Vrrm)
Max Reverse Leakage Current
Max Reverse Voltage (DC)
Max Surge Current
Min Operating Temperature
Number of Pins
Packaging
Peak Non-Repetitive Surge Current
Peak Reverse Current
Power Dissipation
REACH SVHC
Recovery Time
Reverse Recovery Time
RoHS
Schedule B
Width
Description
150 mA
1206
1206
3216
Tin
Single
150 mA
1 V
950 µm
3.4 mm
4 A
125 °C
100 V
2.5 µA
100 V
4 A
-55 °C
2
Tape and Reel
4 A
2.5 µA
400 mW
No SVHC
4 ns
4 ns
Compliant
8541100070
1.7 mm
In Stock
Quantity
MOQ : Unavailable
Per Unit Price
₹Infinity
Total Price
₹Infinity
Ships in 7-10 days from Bengaluru
