CC0805KRX7R9BB152
Manufacturer
Yageo
Description

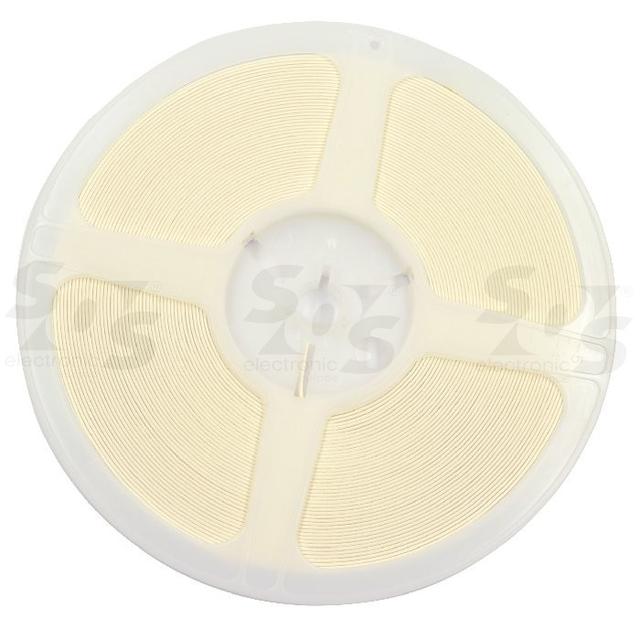

Surface Mount Ceramic Multilayer Capacitor 0.0015uF 10% X7R 50V 0805 Paper T/R
Datasheet
DownloadProduct Attributes
Type
Capacitance
Case/Package
Case Code (Imperial)
Case Code (Metric)
Composition
Depth
Dielectric
Dielectric Material
Halogen Free
Height
Insulation Resistance
Lead Free
Length
Material
Max Operating Temperature
Manufacturer Package Identifier
Min Operating Temperature
Mount
Number of Pins
Radiation Hardening
REACH SVHC
RoHS
Schedule B
Termination
Thickness
Tolerance
Voltage Rating
Voltage Rating (AC)
Voltage Rating (DC)
Weight
Width
Description
1.5 nF
0805
0805
2012
Ceramic
1.25 mm
X7R
Ceramic
Halogen Free
950 µm
100 GΩ
Lead Free
2 mm
Ceramic
85 °C
CC0805-0.85
-30 °C
Surface Mount
2
No
Unknown
Compliant
8532240020, 8532240020|8532240020, 8532240020|8532240020|8532240020, 8532240020|8532240020|8532240020|8532240020
SMD/SMT
609.6 µm
10 %
50 V
50 V
50 V
5.499807 mg
1.25 mm
