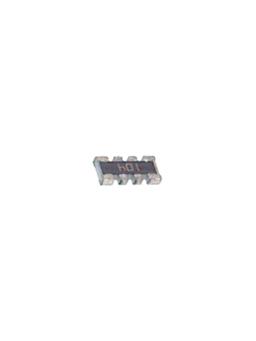

CAY16-1002F4LF
Manufacturer
Bourns
Description
Res Thick Film Array 10K Ohm 1% 0.25W(1/4W) 200ppm/C ISOL 8-Pin 1206(4 X 0603) Convex SMD T/R
Datasheet
DownloadProduct Attributes
Type
Case/Package
Case Code (Imperial)
Case Code (Metric)
Circuit Type
Depth
Height
Length
Max Operating Temperature
Military Standard
Min Operating Temperature
Mount
Number of Circuits
Number of Elements
Number of Pins
Number of Resistors
Number of Terminals
Packaging
Power Per Element
Power Rating
Radiation Hardening
REACH SVHC
Resistance
RoHS
Schedule B
Temperature Coefficient
Terminal Pitch
Termination
Tolerance
Voltage Rating
Voltage Rating (DC)
Width
Description
1206
1206
3216
Isolated
1.6 mm
609.6 µm
3.2 mm
125 °C
Not
-55 °C
Surface Mount
4
4
8
4
8
Cut Tape
62.5 mW
248 mW
No
No SVHC
10 kΩ
Compliant
8533210025, 8533210025|8533210025, 8533210025|8533210025|8533210025, 8533210025|8533210025|8533210025|8533210025
200 ppm/°C
800 µm
Convex
1 %
50 V
50 V
1.6002 mm
