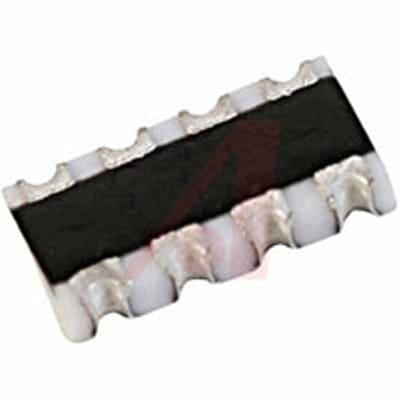

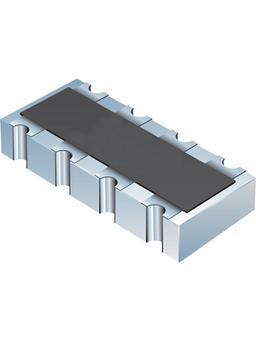

CAT16-153J4LF
Manufacturer
Bourns
Description
Res Thick Film Array 15K Ohm 5% 0.25W(1/4W) 200ppm/C ISOL 8-Pin 1206(4 X 0603) Concave SMD T/R
Datasheet
DownloadProduct Attributes
Type
Case/Package
Case Code (Imperial)
Case Code (Metric)
China RoHS
Circuit Type
Contact Plating
Depth
Height
Length
Lifecycle Status
Max Operating Temperature
Military Standard
Min Operating Temperature
Mount
Number of Circuits
Number of Elements
Number of Pins
Number of Resistors
Number of Terminals
Packaging
Power Dissipation
Power Per Element
Power Rating
REACH SVHC
Resistance
RoHS
Schedule B
Temperature Coefficient
Terminal Pitch
Termination
Tolerance
Voltage Rating
Voltage Rating (DC)
Width
Working Voltage
Description
1206
1206
3216
Non-Compliant
Isolated
Tin
1.55 mm
500 µm
3.2 mm
Production (Last Updated: 7 months ago)
125 °C
Not
-55 °C
Surface Mount
4
1
8
4
8
Cut Tape
250 mW
62.5 mW
62 mW
Yes
15 kΩ
Compliant
8533210025|8533210025, 8533210025|8533210025|8533210025|8533210025|8533210025
200 ppm/°C
800 µm
Concave
5 %
50 V
50 V
1.55 mm
50 V
In Stock
Quantity
MOQ : 11
Per Unit Price
₹9.78
Total Price
₹107.59
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹107.59
₹107.59
10
₹10.06
₹100.57
25
₹4.01
₹100.34
50
₹2.56
₹128.04
100
₹1.52
₹152.05
500
₹1.52
₹761.15
1000
₹1.14
₹1141.73
