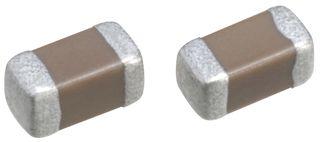

C2012X5R1H225K125AB
Manufacturer
TDK
Description
C Series 0805 2.2 uF 50 V 10 % Tolerance X5R SMT Multilayer Ceramic Capacitor
Datasheet
DownloadProduct Attributes
Type
Capacitance
Case/Package
Case Code (Imperial)
Case Code (Metric)
Composition
Depth
Dielectric
Dielectric Material
Dissipation Factor
Height
Insulation Resistance
Lead Free
Length
Lifecycle Status
Manufacturer Lifecycle Status
Material
Max Operating Temperature
Min Operating Temperature
Mount
Packaging
Radiation Hardening
REACH SVHC
RoHS
Schedule B
Termination
Thickness
Tolerance
Voltage Rating
Voltage Rating (DC)
Weight
Width
Description
2.2 µF
0805
0805
2012
Ceramic
1.25 mm
X5R
Ceramic
5 %
1.25 mm
10 GΩ
Lead Free
2 mm
Production (Last Updated: 2 years ago)
PRODUCTION (Last Updated: 2 years ago)
Ceramic
85 °C
-55 °C
Surface Mount
Digi-Reel®
No
No SVHC
Compliant
8532240020, 8532240020|8532240020|8532240020|8532240020|8532240020
SMD/SMT
1.4478 mm
10 %
50 V
50 V
5.499807 mg
1.2 mm
