BZT52C3V3T-7
Manufacturer
Diodes Inc.
Description

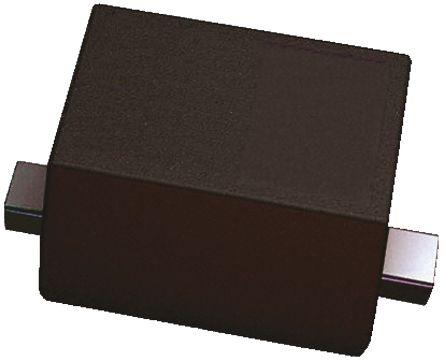

BZT52C3V3T Series 300 mW 3.3 V 10 mA Surface Mount Zener Diode - SOD-523
Datasheet
DownloadProduct Attributes
Type
Contact Plating
Element Configuration
ESD Protection
Forward Voltage
Height
Impedance
Lead Free
Length
Max Operating Temperature
Max Power Dissipation
Max Reverse Leakage Current
Min Operating Temperature
Mount
Number of Pins
Packaging
Peak Reverse Current
Power Dissipation
Power Rating
REACH SVHC
RoHS
Schedule B
Termination
Test Current
Tolerance
Voltage Tolerance
Weight
Width
Working Voltage
Zener Current
Zener Voltage
Description
Tin
Single
No
900 mV
700 µm
95 Ω
Lead Free
1.3 mm
150 °C
300 mW
5 µA
-65 °C
Surface Mount
2
Cut Tape
5 µA
300 mW
300 mW
No SVHC
Compliant
8541100050, 8541100050|8541100050|8541100050|8541100050|8541100050
SMD/SMT
5 mA
6 %
6 %
992.233309 µg
900 µm
3.3 V
5 mA
3.3 V
