BYS10-25-E3/TR
Manufacturer
Vishay
Description

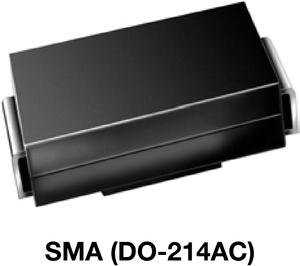

BYS10-25 Series 25 V 1.5 A Surface Mount Schottky Barrier Rectifier - DO-214AC
Datasheet
DownloadProduct Attributes
Type
Average Rectified Current
Case/Package
Contact Plating
Current Rating
Element Configuration
Forward Current
Forward Voltage
Lead Free
Length
Max Forward Surge Current (Ifsm)
Max Operating Temperature
Max Repetitive Reverse Voltage (Vrrm)
Max Reverse Voltage (DC)
Min Operating Temperature
Mount
Number of Pins
Packaging
Peak Non-Repetitive Surge Current
Peak Reverse Current
Radiation Hardening
REACH SVHC
RoHS
Schedule B
Width
Description
1.5 A
SMA
Tin
30 A
Single
1.5 A
500 mV
Lead Free
4.6 mm
40 A
150 °C
25 V
25 V
-65 °C
Surface Mount
2
Cut Tape
40 A
500 µA
No
Unknown
Compliant
8541100080, 8541100080|8541100080|8541100080|8541100080|8541100080
2.9 mm
