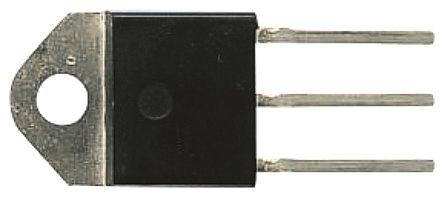

BTW68-1200RG
Manufacturer
STMicroelectronics
Description
Silicon Controlled Rectifier, 30A I(T)RMS, 25A I(T), 1200V V(DRM), 1200V V(RRM), 1 Element
Datasheet
DownloadProduct Attributes
Type
Case/Package
China RoHS
Contact Plating
Current Rating
Forward Voltage
Height
Hold Current
Lead Free
Leakage Current
Length
Lifecycle Status
Max Junction Temperature (Tj)
Max Operating Temperature
Max Repetitive Reverse Voltage (Vrrm)
Max RMS Current
Min Operating Temperature
Mount
Number of Elements
Number of Pins
Number of Terminals
Peak Non-Repetitive Surge Current
Radiation Hardening
REACH SVHC
RMS Current (Irms)
RoHS
Schedule B
Weight
Width
Description
TO-218
Non-Compliant
Tin
19 A
2.1 V
21.1 mm
75 mA
Lead Free
3 mA
15.5 mm
Production (Last Updated: 7 months ago)
125 °C
125 °C
1.2 kV
30 A
-40 °C
Through Hole
1
3
3
400 A
No
No SVHC
30 A
Compliant
8541300080, 8541300080|8541300080, 8541300080|8541300080|8541300080, 8541300080|8541300080|8541300080|8541300080
6.756003 g
4.6 mm
In Stock
Quantity
MOQ : 1
Per Unit Price
₹601.99
Total Price
₹601.99
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹601.99
₹601.99
10
₹602.26
₹6022.55
25
₹602.27
₹15056.82
50
₹343.00
₹17150.00
100
₹343.00
₹34300.00
