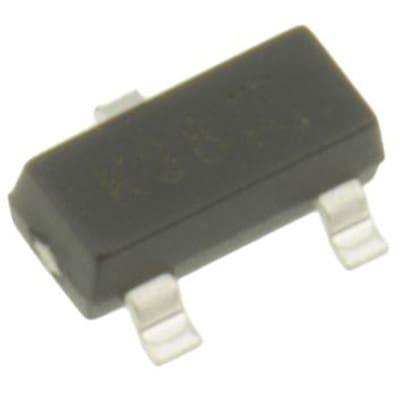

BSS138-7-F
Manufacturer
Diodes Inc.
Description
N-Channel 50 V 3.5 Ohm Surface Mount Enhancement Mode Transistor SOT-23-3
Datasheet
DownloadProduct Attributes
Type
Case/Package
Contact Plating
Continuous Drain Current (ID)
Current
Current Rating
Drain to Source Breakdown Voltage
Drain to Source Resistance
Drain to Source Voltage (Vdss)
Element Configuration
Fall Time
Gate to Source Voltage (Vgs)
Height
Input Capacitance
Lead Free
Length
Max Operating Temperature
Max Power Dissipation
Min Operating Temperature
Mount
Nominal Vgs
Number of Channels
Number of Elements
Number of Pins
Packaging
Power Dissipation
Rds On Max
REACH SVHC
Resistance
Rise Time
RoHS
Schedule B
Threshold Voltage
Turn-Off Delay Time
Turn-On Delay Time
Voltage
Voltage Rating (DC)
Weight
Width
Description
SOT-23
Tin
200 mA
2 A
200 mA
50 V
1.4 Ω
50 V
Single
25 ns
20 V
1 mm
50 pF
Lead Free
2.9 mm
150 °C
300 mW
-55 °C
Surface Mount
1.2 V
1
1
3
Cut Tape
300 mW
3.5 Ω
No SVHC
3.5 Ω
10 ns
Compliant
8541210080
1.2 V
20 ns
20 ns
50 V
50 V
7.994566 mg
1.3 mm
