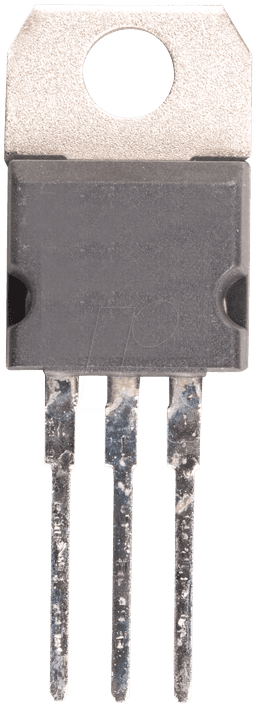

BDX53C

Type

Case/Package

Collector Base Voltage (VCBO)

Collector Emitter Breakdown Voltage

Collector Emitter Saturation Voltage

Collector Emitter Voltage (VCEO)

Contact Plating

Continuous Collector Current

Current Rating

Element Configuration

Emitter Base Voltage (VEBO)

Height

hFE Min

Lead Free

Length

Lifecycle Status

Max Collector Current

Max Junction Temperature (Tj)

Max Operating Temperature

Max Power Dissipation

Min Operating Temperature

Mount

Number of Channels

Number of Elements

Number of Pins

Polarity

Power Dissipation

Radiation Hardening

REACH SVHC

RoHS

Schedule B

Voltage Rating (DC)

Weight

Width

Description

TO-220

100 V

100 V

2 V

100 V

Tin

8 A

8 A

Single

5 V

19.68 mm

750

Lead Free

10.4 mm

Production (Last Updated: 3 years ago)

8 A

150 °C

150 °C

60 W

-65 °C

Through Hole

1

1

3

NPN

60 W

No

No SVHC

Compliant

8541290080, 8541290080|8541290080, 8541290080|8541290080|8541290080, 8541290080|8541290080|8541290080|8541290080

100 V

90.718474 mg

4.6 mm
