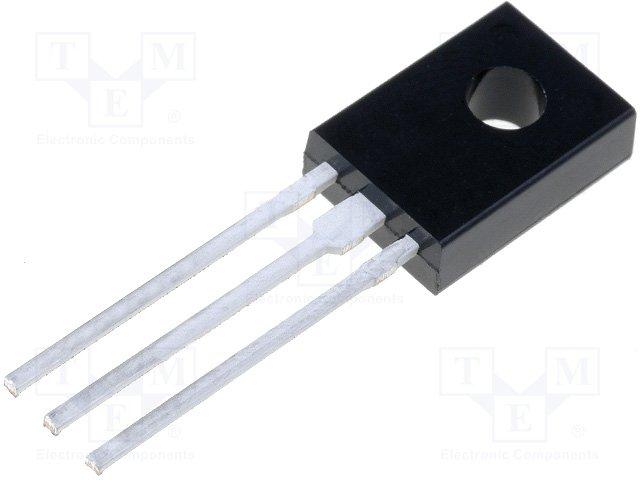

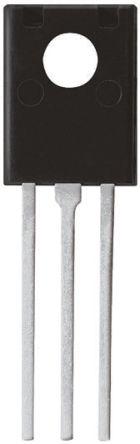

BD238STU

Manufacturer

onsemi

Description

Power 2 Amp 80 V PNP 25W Bipolar Junction Transistor

Datasheet

download datasheetDownload

Product Attributes

Type

Case/Package

Collector Base Voltage (VCBO)

Collector Emitter Breakdown Voltage

Collector Emitter Saturation Voltage

Collector Emitter Voltage (VCEO)

Contact Plating

Current Rating

Element Configuration

Emitter Base Voltage (VEBO)

Frequency

Gain Bandwidth Product

Height

hFE Min

Lead Free

Length

Lifecycle Status

Manufacturer Lifecycle Status

Max Breakdown Voltage

Max Collector Current

Max Frequency

Max Operating Temperature

Max Power Dissipation

Min Operating Temperature

Mount

Number of Elements

Number of Pins

Polarity

Power Dissipation

Radiation Hardening

REACH SVHC

RoHS

Transition Frequency

Voltage Rating (DC)

Weight

Width

Description

TO-126

-100 V

80 V

-600 mV

80 V

Tin

-2 A

Single

-5 V

3 MHz

3 MHz

11 mm

25

Lead Free

8 mm

Obsolete (Last Updated: 4 months ago)

OBSOLETE (Last Updated: 4 months ago)

100 V

2 A

3 MHz

150 °C

25 W

-65 °C

Through Hole

1

3

PNP

25 W

No

No SVHC

Compliant

3 MHz

-80 V

761 mg

3.25 mm

In Stock

Quantity

MOQ : Unavailable

decrement quantity
increment quantity

Per Unit Price

₹Infinity

Total Price

₹Infinity

delivery

Ships in 7-10 days from Bengaluru
