BCP56-16

Type

Case/Package

Collector Base Voltage (VCBO)

Collector Emitter Breakdown Voltage

Collector Emitter Saturation Voltage

Collector Emitter Voltage (VCEO)

Contact Plating

Element Configuration

Emitter Base Voltage (VEBO)

Height

hFE Min

Lead Free

Length

Lifecycle Status

Max Breakdown Voltage

Max Collector Current

Max Junction Temperature (Tj)

Max Operating Temperature

Max Power Dissipation

Manufacturer Package Identifier

Min Operating Temperature

Mount

Number of Elements

Number of Pins

Packaging

Polarity

Power Dissipation

Radiation Hardening

REACH SVHC

RoHS

Schedule B

Width

Description

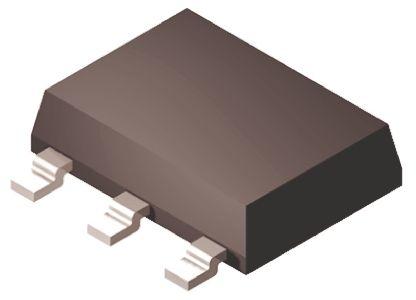

SOT-223

100 V

80 V

500 mV

80 V

Tin

Single

5 V

1.8 mm

40

Lead Free

6.7 mm

Production (Last Updated: 11 months ago)

80 V

1 A

150 °C

150 °C

1.6 W

SOT-223-P008

-65 °C

Surface Mount

1

3

Tape and Reel

NPN

1.6 W

No

No SVHC

Compliant

8541290080, 8541290080|8541290080, 8541290080|8541290080|8541290080, 8541290080|8541290080|8541290080|8541290080

3.7 mm
