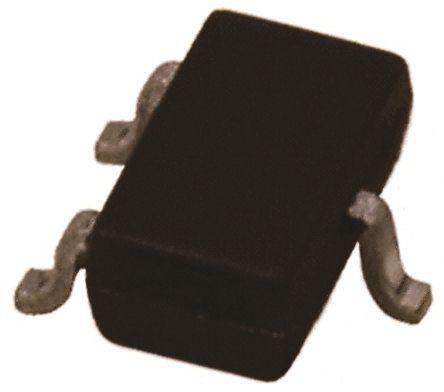

BAT54ST-7-F
Manufacturer
Diodes Inc.
Description
DIODE ARRAY SCHOTTKY 30V SOT523 / Rectifier Diode Schottky 30V 0.2A 5ns 3-Pin SOT-523 T/R
Datasheet
DownloadProduct Attributes
Type
Average Rectified Current
Capacitance
Case/Package
Current Rating
Forward Current
Forward Voltage
Height
Lead Free
Length
Max Forward Surge Current (Ifsm)
Max Junction Temperature (Tj)
Max Operating Temperature
Max Power Dissipation
Max Repetitive Reverse Voltage (Vrrm)
Max Reverse Voltage (DC)
Min Operating Temperature
Mount
Number of Pins
Packaging
Peak Non-Repetitive Surge Current
Peak Reverse Current
Power Dissipation
Power Rating
Radiation Hardening
Reverse Recovery Time
Reverse Voltage
RoHS
Schedule B
Termination
Voltage Rating (DC)
Weight
Width
Description
200 mA
10 pF
SOT-523
200 mA
200 mA
1 V
900 µm
Lead Free
1.6 mm
600 mA
150 °C
150 °C
150 mW
30 V
30 V
-65 °C
Surface Mount, Through Hole
3
Tape & Reel (TR)
600 mA
2 µA
150 mW
150 mW
No
5 ns
30 V
Compliant
8541100070, 8541100070|8541100070|8541100070|8541100070|8541100070
SMD/SMT
30 V
2.012816 mg
800 µm
Product Attributes
Type
Average Rectified Current
Capacitance
Case/Package
Current Rating
Forward Current
Forward Voltage
Height
Lead Free
Length
Max Forward Surge Current (Ifsm)
Max Junction Temperature (Tj)
Max Operating Temperature
Max Power Dissipation
Max Repetitive Reverse Voltage (Vrrm)
Max Reverse Voltage (DC)
Min Operating Temperature
Mount
Number of Pins
Packaging
Peak Non-Repetitive Surge Current
Peak Reverse Current
Power Dissipation
Power Rating
Radiation Hardening
Reverse Recovery Time
Reverse Voltage
RoHS
Schedule B
Termination
Voltage Rating (DC)
Weight
Width
Description
200 mA
10 pF
SOT-523
200 mA
200 mA
1 V
900 µm
Lead Free
1.6 mm
600 mA
150 °C
150 °C
150 mW
30 V
30 V
-65 °C
Surface Mount, Through Hole
3
Tape & Reel (TR)
600 mA
2 µA
150 mW
150 mW
No
5 ns
30 V
Compliant
8541100070, 8541100070|8541100070|8541100070|8541100070|8541100070
SMD/SMT
30 V
2.012816 mg
800 µm
