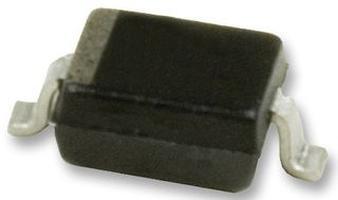

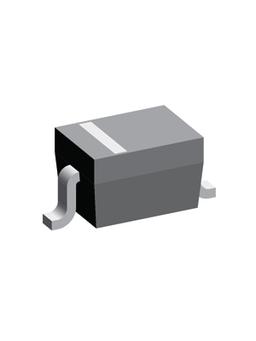

BAT54JFILM
Manufacturer
STMicroelectronics
Description
Rectifier Diode Small Signal Schottky 40V 0.3A 5ns 2-Pin SOD-323 T/R
Datasheet
DownloadProduct Attributes
Type
Average Rectified Current
Capacitance
Case/Package
Contact Plating
Current Rating
Element Configuration
Forward Current
Forward Voltage
Height
Lead Free
Length
Lifecycle Status
Max Forward Surge Current (Ifsm)
Max Junction Temperature (Tj)
Max Operating Temperature
Max Repetitive Reverse Voltage (Vrrm)
Max Reverse Leakage Current
Max Reverse Voltage (DC)
Max Surge Current
Min Operating Temperature
Mount
Number of Pins
Output Current
Packaging
Peak Non-Repetitive Surge Current
Peak Reverse Current
Polarity
Radiation Hardening
REACH SVHC
Recovery Time
Reverse Recovery Time
RoHS
Schedule B
Termination
Voltage Rating (DC)
Weight
Width
Description
300 mA
7 pF
SC
Tin
300 mA
Single
300 mA
900 mV
1.07 mm
Lead Free
1.8 mm
Production (Last Updated: 2 years ago)
1 A
150 °C
150 °C
40 V
1 µA
40 V
1 A
-40 °C
Surface Mount
2
300 mA
Digi-Reel®
1 A
1 µA
Standard
No
No SVHC
5 ns
5 ns
Compliant
8541100070, 8541100070|8541100070|8541100070|8541100070|8541100070|8541100070|8541100070|8541100070|8541100070|8541100070|8541100070|8541100070|8541100070|8541100070|8541100070|8541100070|8541100070|8541100070|8541100070|8541100070|8541100070|8541100070|8541100070|85
SMD/SMT
30 V
4.535924 g
1.45 mm
