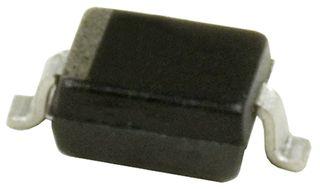

BAT20JFILM
Manufacturer
STMicroelectronics
Description
Rectifier Diode, Schottky, 1 Phase, 1 Element, 1A, 23V V(RRM), Silicon
Datasheet
DownloadProduct Attributes
Type
Average Rectified Current
Capacitance
Current Rating
Element Configuration
Forward Current
Forward Voltage
Height
Lead Free
Length
Lifecycle Status
Max Forward Surge Current (Ifsm)
Max Junction Temperature (Tj)
Max Operating Temperature
Max Repetitive Reverse Voltage (Vrrm)
Max Reverse Leakage Current
Max Reverse Voltage (DC)
Max Surge Current
Min Operating Temperature
Mount
Number of Pins
Output Current
Packaging
Peak Non-Repetitive Surge Current
Peak Reverse Current
Polarity
Radiation Hardening
REACH SVHC
RoHS
Schedule B
Voltage Rating (DC)
Weight
Width
Description
1 A
20 pF
1 A
Single
1 A
620 mV
1.03 mm
Lead Free
1.8 mm
Production (Last Updated: 2 years ago)
5 A
150 °C
150 °C
23 V
12 µA
23 V
5 A
-65 °C
Surface Mount
2
1 A
Cut Tape
5 A
12 µA
Standard
No
No SVHC
Compliant
8541100080
23 V
4.535924 g
1.35 mm
